Side View Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the outside rear view mirror.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

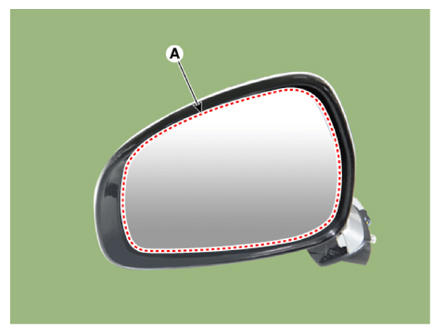

  3. Remove mirror (A) to the direction as shown in the picture using (-) screw driver.
    G13426957Courtesy of KIA MOTORS AMERICA, INC.

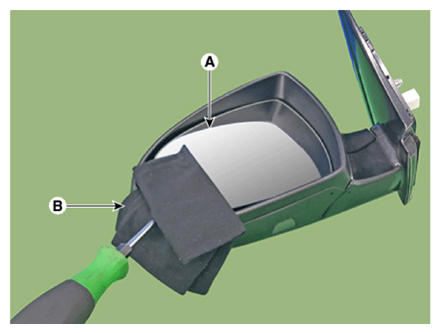

    CAUTION:
    • Protect mirror from removing tool with cloth (B) wrapped.
    • Be careful not to damage mirror and mirror housing during removing process.
    • Apply force around the center of mirror because to apply force the end of mirror will break it.
      G13426958Courtesy of KIA MOTORS AMERICA, INC.

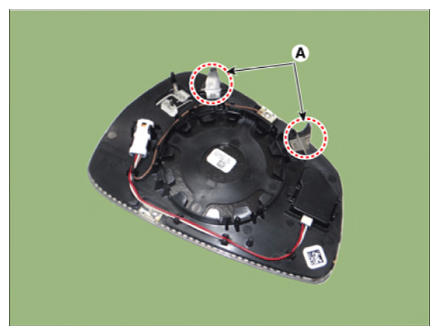

    NOTE: Be careful not to damage the fixing clips (A).
    G13426959Courtesy of KIA MOTORS AMERICA, INC.

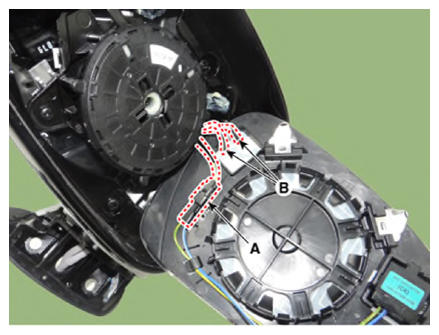

  4. Disconnect the heater connectors (B) and BCW indicator connector (A) from the mirror.
    G13426960Courtesy of KIA MOTORS AMERICA, INC.

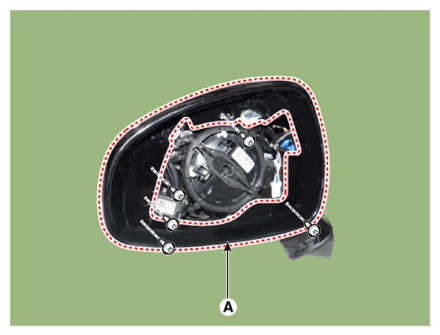

  5. Remove the door mirror housing (A) after loosening the mounting screws.
    G13426961Courtesy of KIA MOTORS AMERICA, INC.

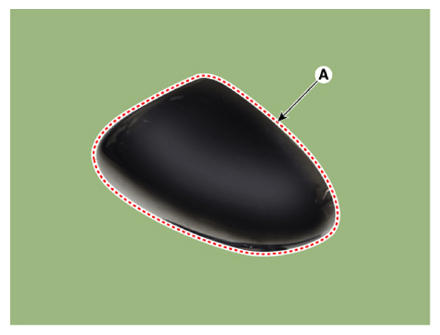

  6. Remove the door mirror back cover (A).
    G13426962Courtesy of KIA MOTORS AMERICA, INC.

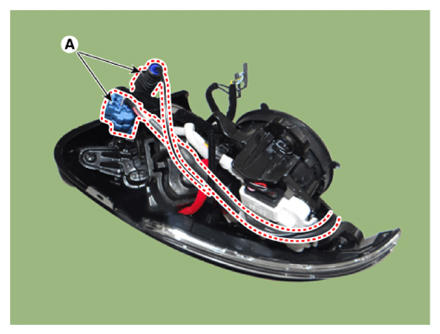

  7. Disconnect the side view camera connectors (A).
    G13426963Courtesy of KIA MOTORS AMERICA, INC.

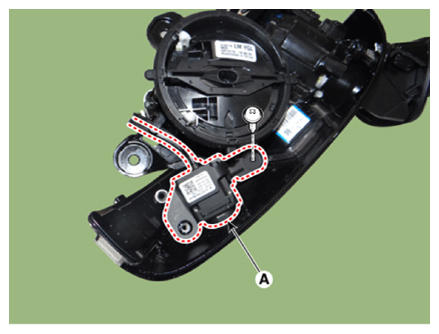

  8. Remove the side view camera (A) after loosening the mounting screw.
    G13426964Courtesy of KIA MOTORS AMERICA, INC.
