Components
>>
Rear View Camera
Rear View Camera

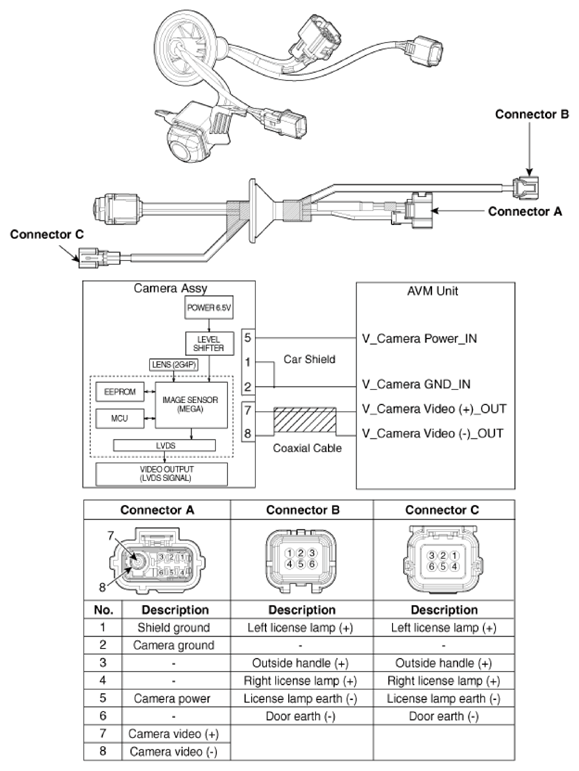

Fig 1: Rear View Camera Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
