Circuit Inspection

G13422481

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON"	RAIN SENSOR harness connector	1 (Power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	RAIN SENSOR harness connector	2 (Ground)	Chassis Ground	-	Approx. below 1Ω

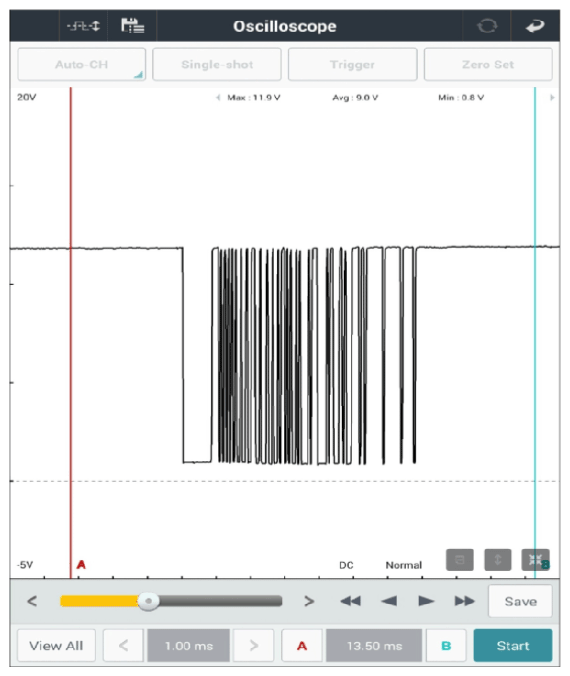

Engine "ON"	RAIN SENSOR harness connector	3 (LIN)	Chassis Ground	-	Fig.1

G13422482

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace Rain Sensor and then go to "VERIFICATION OF REPAIR " procedure.
