Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

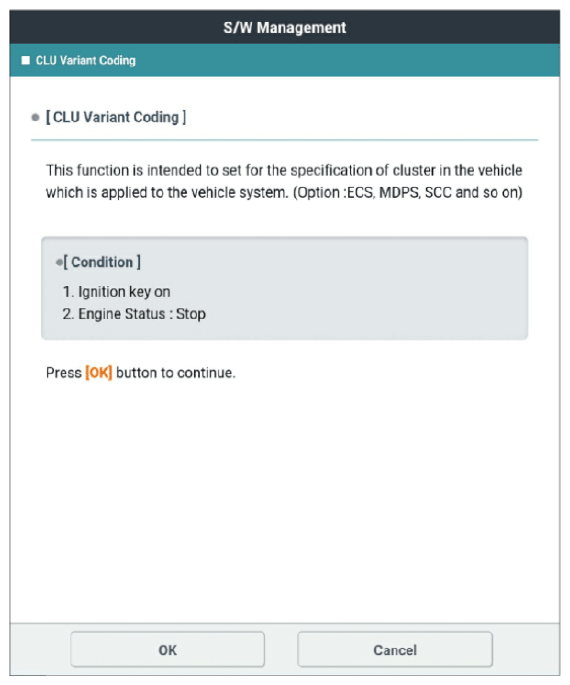

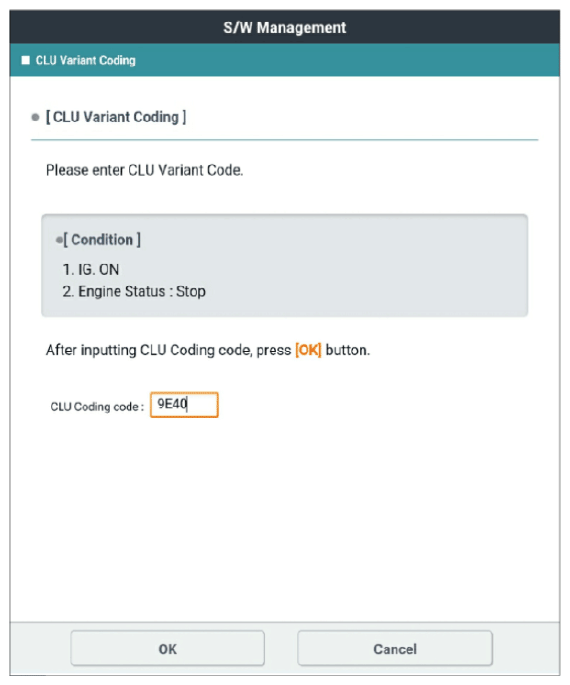

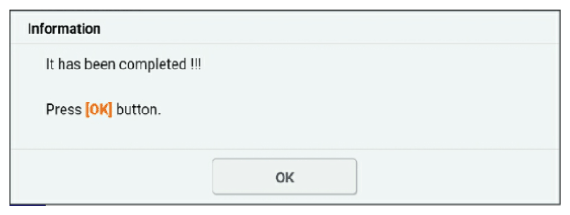

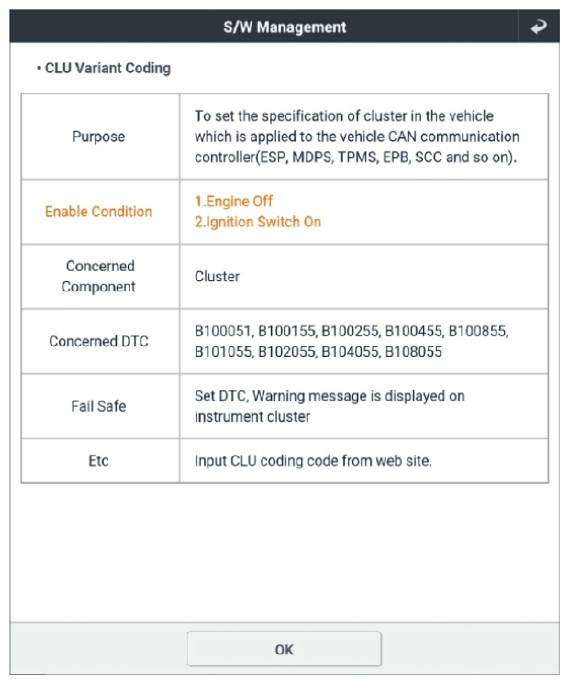

 Fig.1 to 4
G13421768Courtesy of KIA
G13421769Courtesy of KIA
G13421770Courtesy of KIA
G13421771Courtesy of KIA
