Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 4

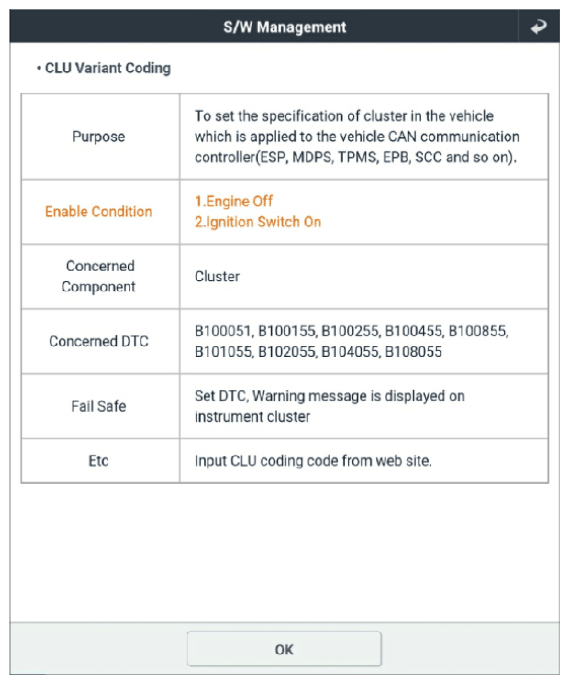

G13421672Courtesy of KIA

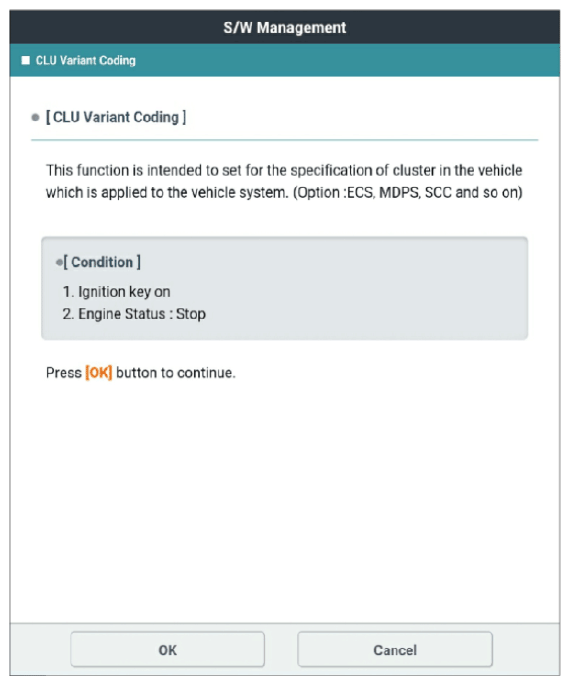

G13421673Courtesy of KIA

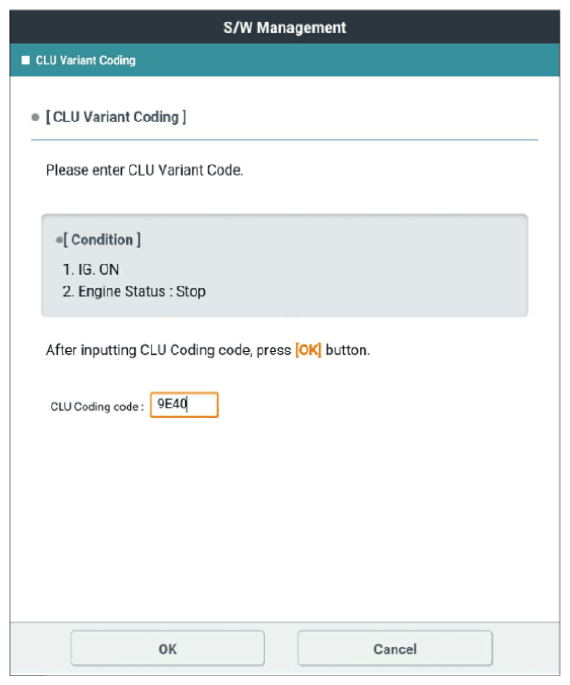

G13421674Courtesy of KIA

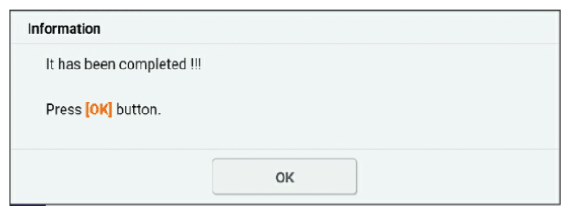

G13421675Courtesy of KIA
