Component Inspection: Notes
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

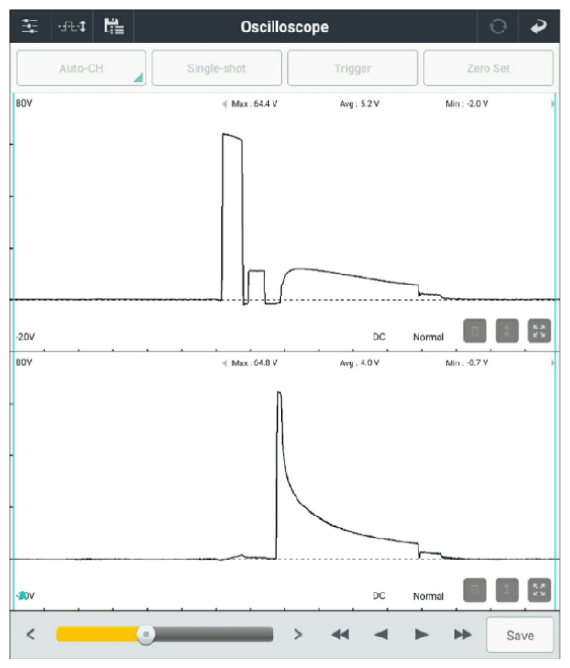

concerned injector connector | 1 (High) | Chassis ground | - | Fig.1 |
| concerned injector connector | 2 (Low) | ||||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Injector and go to "VERIFICATION OF REPAIR " procedure.
