Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.

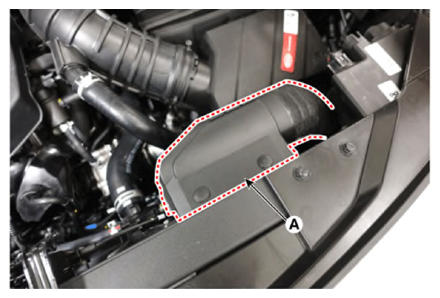

  2. Remove the air duct (A).
    G13281608Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front impact sensor (A) by loosening the nut after disconnecting the connector (B).

    Tightening torque:

    6.9 - 7.8 N.m (0.7 - 0.8 kgf.m, 5.1 - 5.8 lbf.ft)

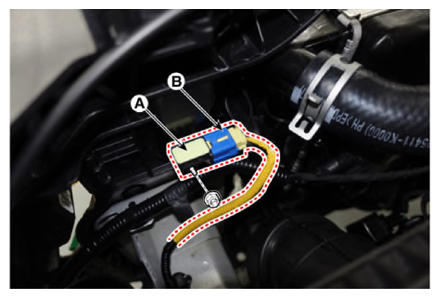

    [LH]

    G13281609Courtesy of KIA MOTORS AMERICA, INC.

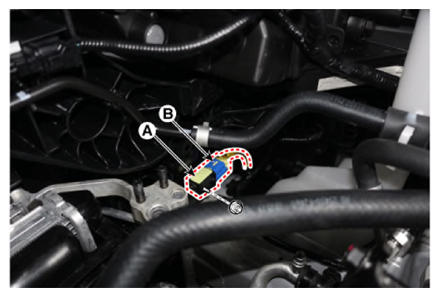

    [RH]

G13281610Courtesy of KIA MOTORS AMERICA, INC.
