Washer Fluid Level Sensor

  1. Disconnect the negative battery terminal.
  2. Drain the washer fluid less than 650 cc.

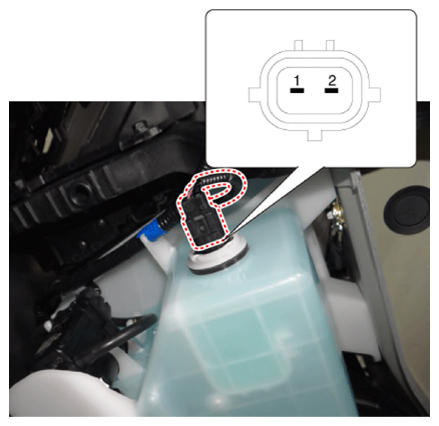

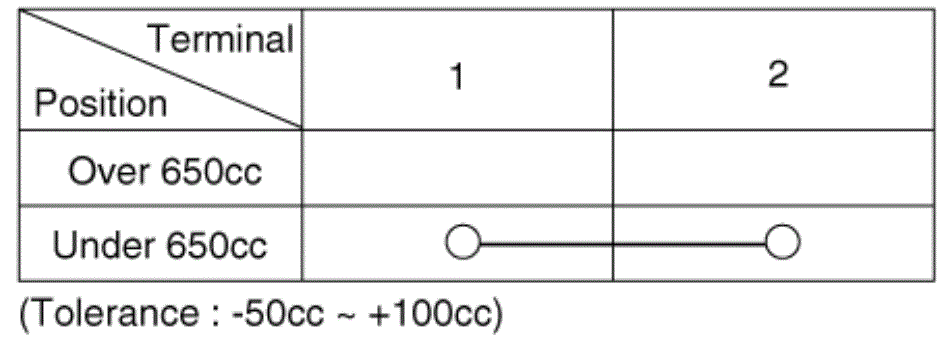

  3. Check for continuity between the No. 1 and No. 2 terminal in each float position.

    There should be continuity when the float is down.

    There should be no continuity when the float is up.

  4. If the continuity is not as specified, replace the washer fluid level switch
    G13282910Courtesy of KIA MOTORS AMERICA, INC.
    G13282911Courtesy of KIA MOTORS AMERICA, INC.
