Repair Procedures: Removal

  1. Remove the liftgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

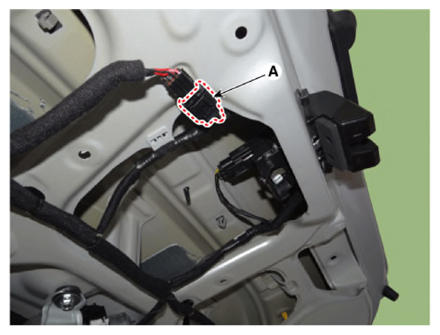

  2. Disconnect the connector (A).
    G13283253Courtesy of KIA MOTORS AMERICA, INC.

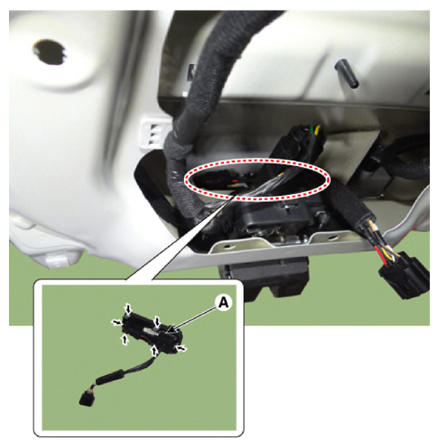

  3. Remove the tailgate lid handle & rear view camera assembly (A) by pressing the fixing hooks in the direction of arrows.
    G13283254Courtesy of KIA MOTORS AMERICA, INC.

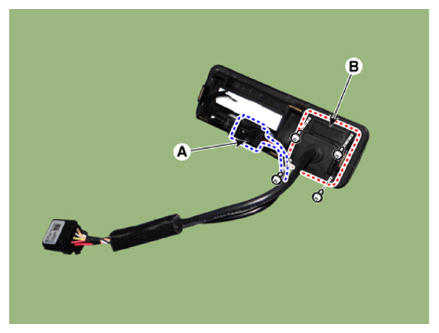

  4. Disconnect the connector (A) and then remove the rear view camera (B) by loosening the screws.
    G13283255Courtesy of KIA MOTORS AMERICA, INC.
