Repair Procedures: Replacement

Uplift the vehicle with lift.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

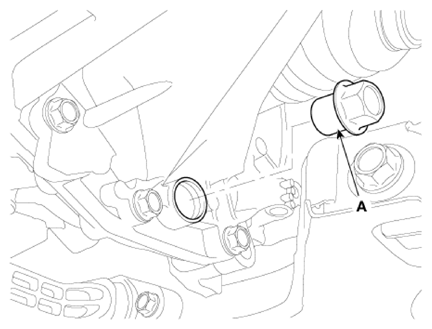

Remove the drain plug (A), allow the oil to drain out and then reinstall the drain plug.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil drain plug gasket must be replaced with a new one. (Do not reuse it.)

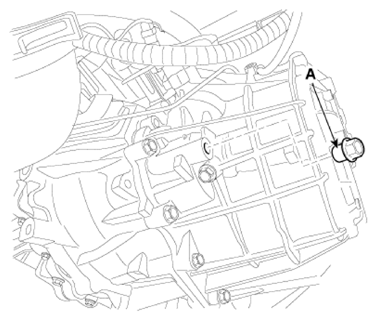

Remove the oil filler plug (A).

Courtesy of KIA MOTORS AMERICA, INC.
Add new oil through the filler plug hole.
Recommended:
- SAE 70W, API GL-4
  - Recommended transaxle oil: SK HK MTF 70W, SHELL SPIRAX S6 GHME 70W, GS CALTEX GS MTF HD 70W
Capacity:

1.7 - 1.8 L (0.45 - 0.48 U.S.gal., 1.80 - 1.90 U.S.qt., 1.50 - 1.58 lmp qt.)
Install the oil filler plug.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

NOTE: The existing oil filler plug gasket must be replaced with a new one. (Do not reuse it.)
Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
