Parking Collision-Avoidance Assist-Reverse (PCA-R) Unit

  1. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

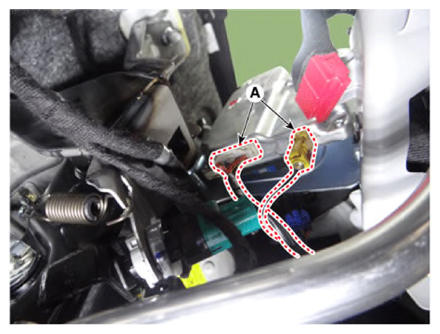

  2. Disconnect the PCA unit connectors (A).
    G13664072Courtesy of KIA MOTORS AMERICA, INC.

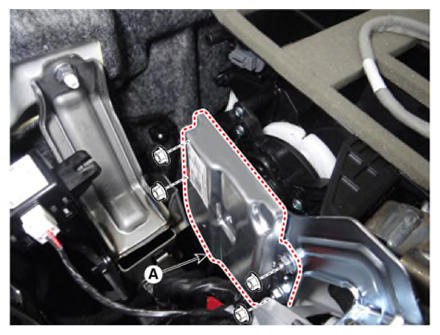

  3. Remove the PCA unit (A) by removing the mounting nuts.
    G13664073Courtesy of KIA MOTORS AMERICA, INC.
