Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

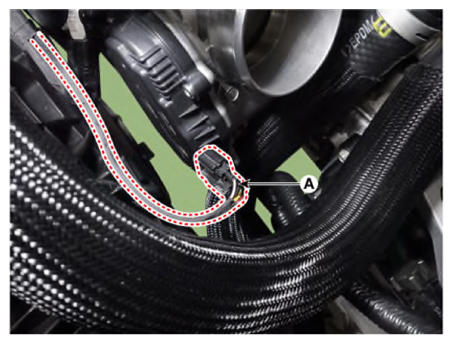

  3. Disconnect the ETC module connector (A).
    G13661079Courtesy of KIA MOTORS AMERICA, INC.

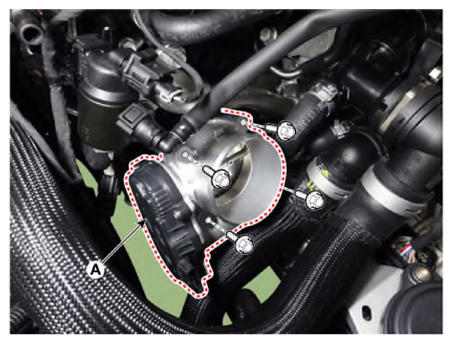

  4. Remove the ETC module (A) after removing the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13661080Courtesy of KIA MOTORS AMERICA, INC.
