Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.

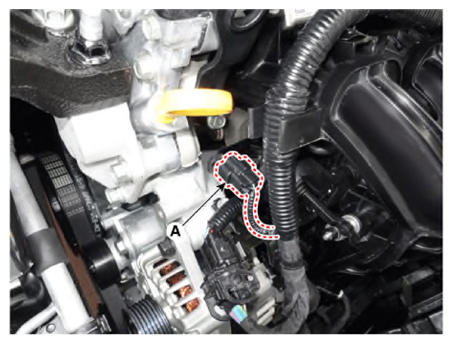

  2. Disconnect the Variable Intake Solenoid (VIS) connector (A).
    G13661153Courtesy of KIA MOTORS AMERICA, INC.

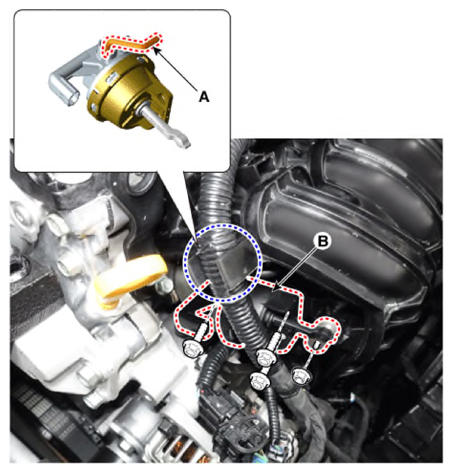

  3. Remove the VIS (B) by loosening the mounting bolts after disconnecting the hose (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13661154Courtesy of KIA MOTORS AMERICA, INC.
