Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 6

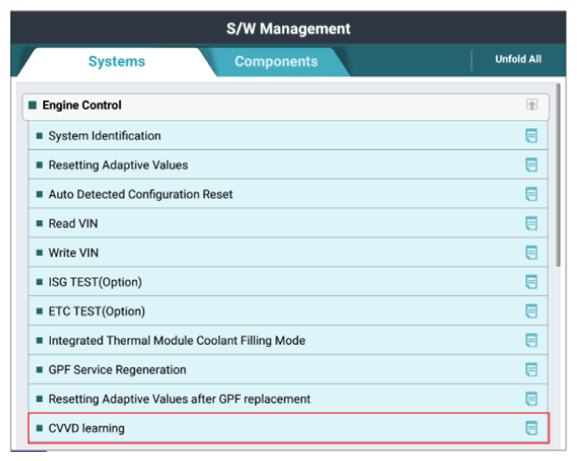

G13582576Courtesy of KIA MOTORS AMERICA, INC.

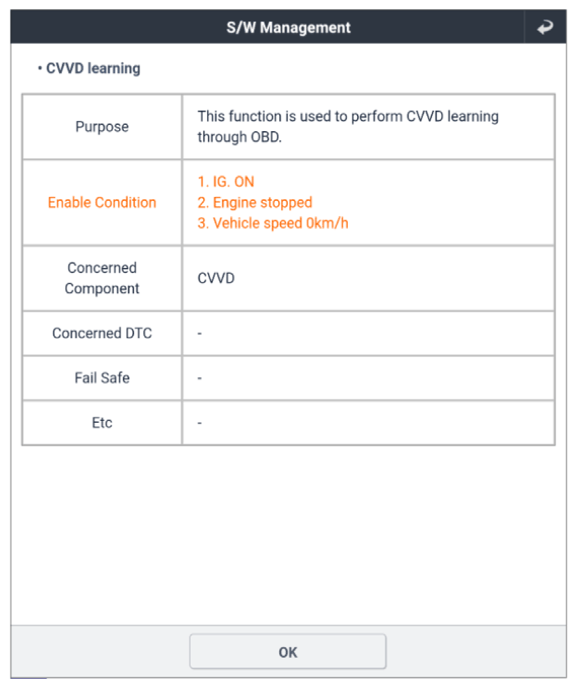

G13582577Courtesy of KIA MOTORS AMERICA, INC.

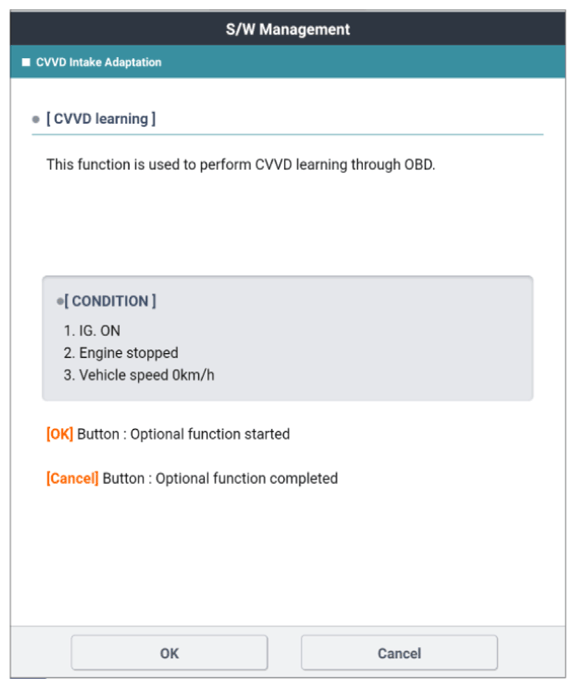

G13582578Courtesy of KIA MOTORS AMERICA, INC.

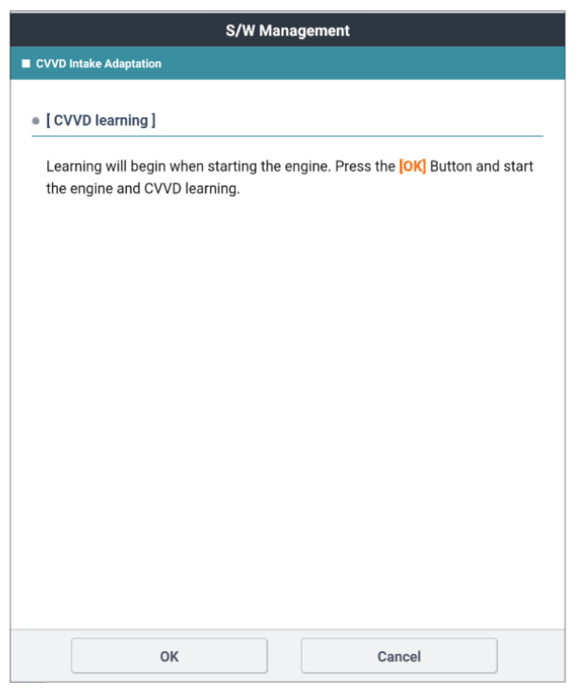

G13582579Courtesy of KIA MOTORS AMERICA, INC.
G13582580Courtesy of KIA MOTORS AMERICA, INC.
G13582581Courtesy of KIA MOTORS AMERICA, INC.
