Repair Procedures: Replacement

  1. Remove the front seat belt pretensioner.

    (Refer to Front Seat Belt - "FRONT SEAT BELT PRETENSIONER ")

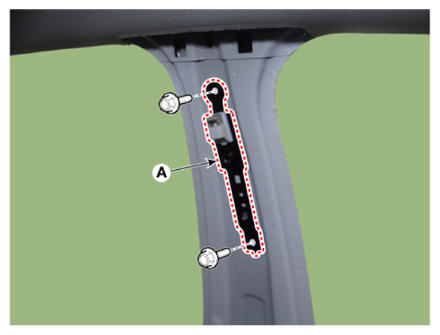

  2. Remove the height adjust (A) by removing the mounting bolts.

    Tightening torque:

    39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

    G13662995Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
