Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the intake hose (A).
    G13664730Courtesy of KIA MOTORS AMERICA, INC.

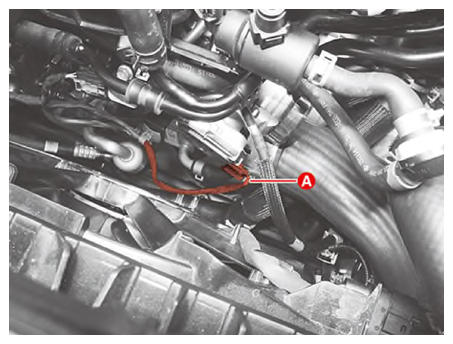

  3. Disconnect the ETC module connector (A).
    G13664731Courtesy of KIA MOTORS AMERICA, INC.

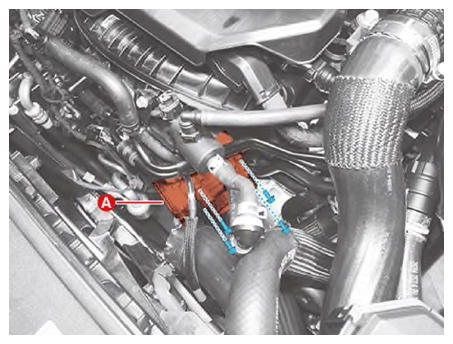

  4. Remove the ETC module (A) after removing the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13664732Courtesy of KIA MOTORS AMERICA, INC.
