Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

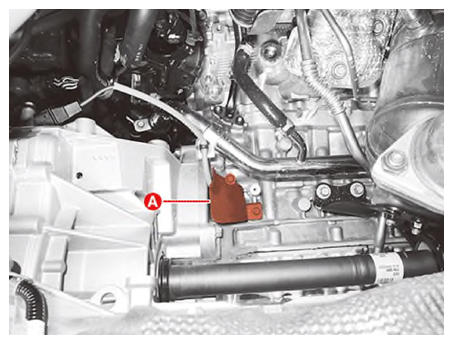

Remove the Crankshaft Position Sensor (CKPS) heat protector (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

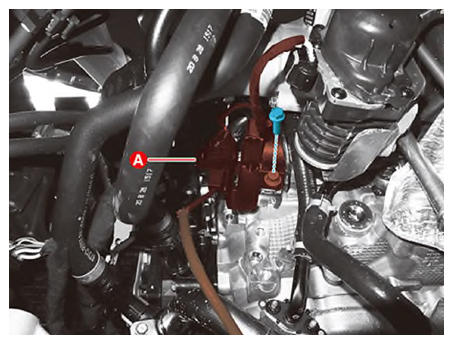

Remove the connector hanger (A) after removing the mounting bolt.
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

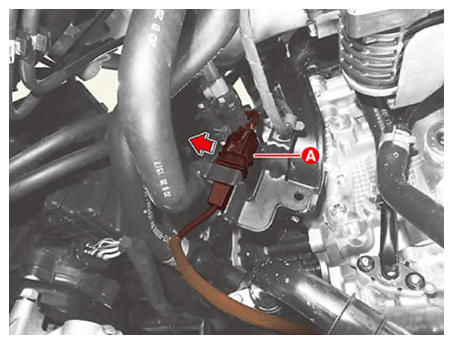

Remove CKPS (A) from the hanger in the arrow direction.

Courtesy of KIA MOTORS AMERICA, INC.

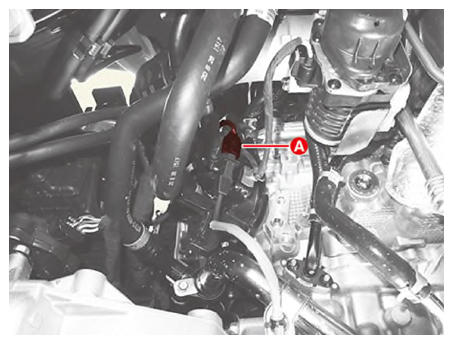

Disconnect the CKPS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

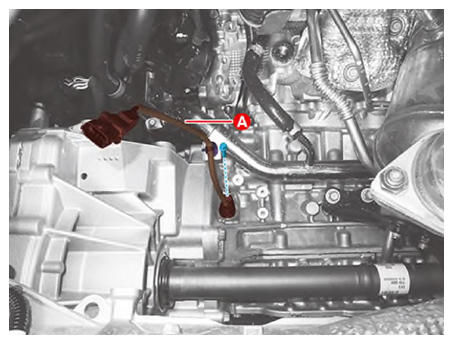

Remove the CKPS (A) by removing the bolt after removing the wiring fixing clip.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
