Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

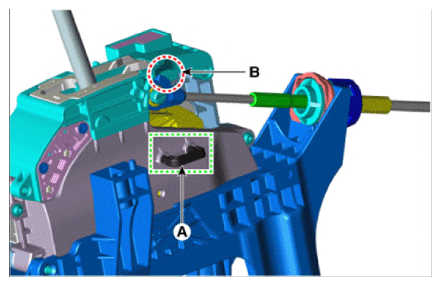

    • Before installing the shift cable, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
    • Install the shift cable after checking the direction of projection (B) to prevent incorrect assembly.
      G13480912Courtesy of KIA MOTORS AMERICA, INC.

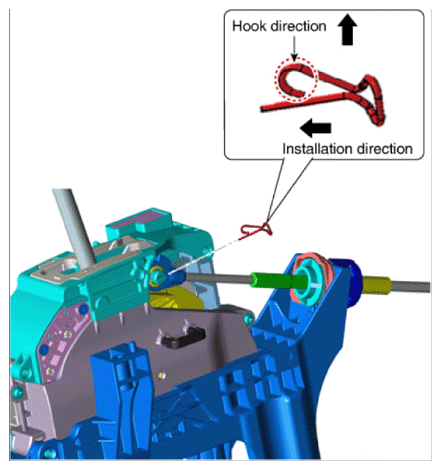

    • Mind the installation direction of snap pin.
      G13480913Courtesy of KIA MOTORS AMERICA, INC.

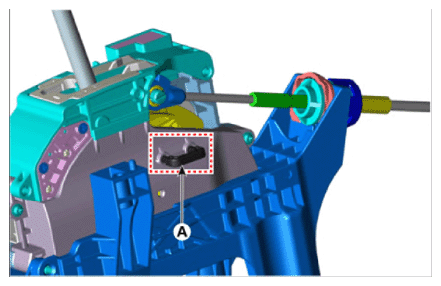

    • Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
      G13480914Courtesy of KIA MOTORS AMERICA, INC.
