Home >> Kia >> 2021 >> Seltos S Turbo >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> Shift Cable >> Components & Components Location >> Components

Components & Components Location: Components

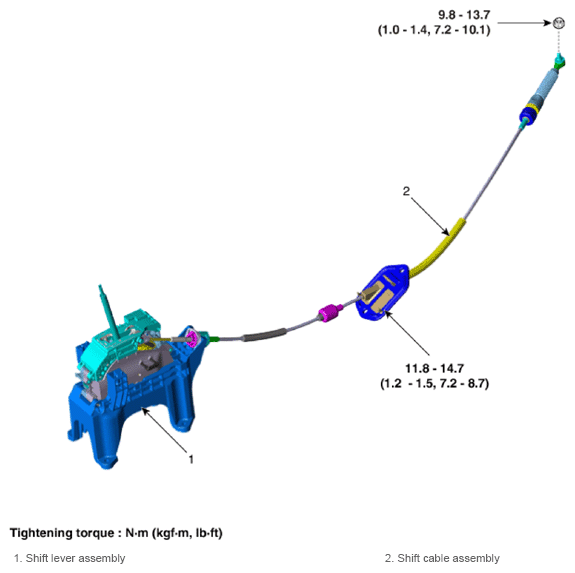

Fig 1: Shift Cable Components Location With Torque Specification

G13480915

Courtesy of KIA MOTORS AMERICA, INC.
