Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.

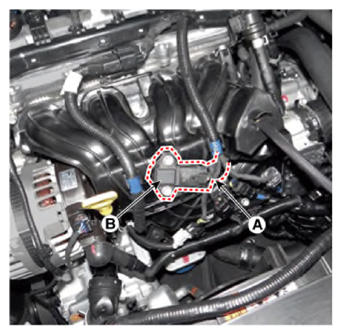

  2. Disconnect the manifold absolute pressure sensor connector (A).
  3. Remove the sensor (B) from the Intake manifold by loosening the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13480614Courtesy of KIA MOTORS AMERICA, INC.
