Repair Procedures: Removal

Occupant Detection System (ODS) Unit

  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
  2. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

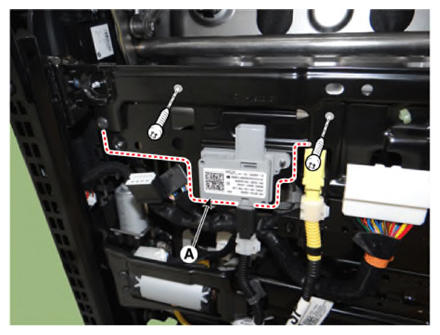

  3. Loosen the mounting screws, remove the bracket (A).
    G13481576Courtesy of KIA MOTORS AMERICA, INC.

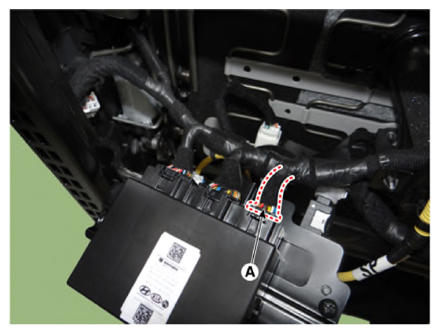

  4. Disconnect the connector (A).
    G13481577Courtesy of KIA MOTORS AMERICA, INC.

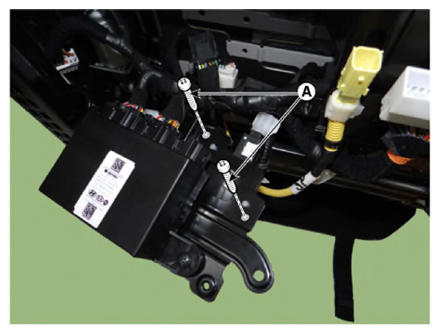

  5. Loosen the ODS Unit mounting screws (A).
    G13481578Courtesy of KIA MOTORS AMERICA, INC.

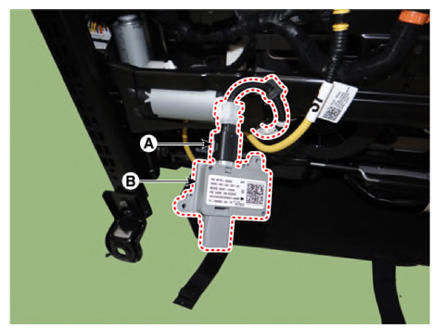

  6. Disconnect the connector (A) and then remove the Occupant Detection System [ODS] (B).
    G13481579Courtesy of KIA MOTORS AMERICA, INC.

Occupant Detection System (ODS) Sensor

NOTE: If the ODS sensor needs to be replaced, the seat cushion assembly should be replaced.
  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Disconnect the ODS sensor connector.
  4. Remove the passenger seat cushion cover.

    (Refer to Body - "FRONT SEAT CUSHION COVER ")
