Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.

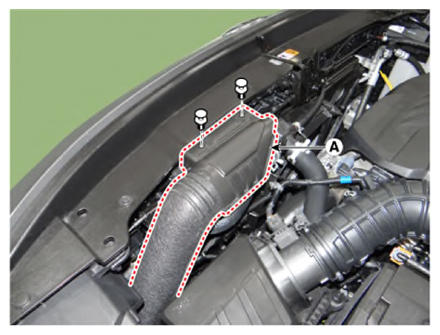

  2. Loosen the mounting clips, remove the air duct (A).
    G13481570Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front impact sensor (A) by loosening the nut after disconnecting the connector (B).

    Tightening torque:

    6.9 - 7.8 N.m (0.7 - 0.8 kgf.m, 5.1 - 5.7 lb.ft, 60.8 - 69.4 lb.in)

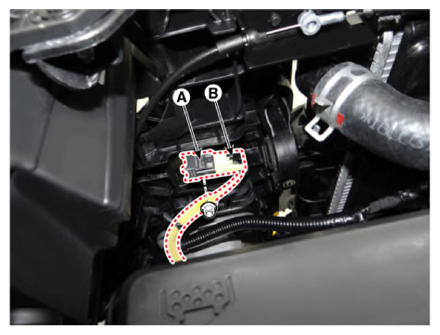

    [LH]

    G13481571Courtesy of KIA MOTORS AMERICA, INC.

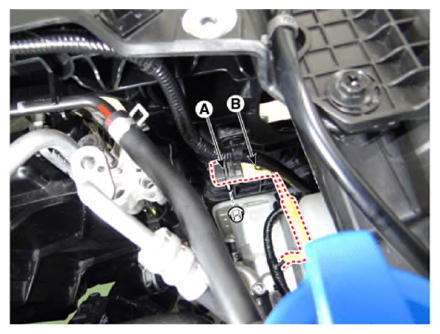

    [RH]

    G13481572Courtesy of KIA MOTORS AMERICA, INC.
