Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
    NOTE: After disconnecting the negative battery terminal, wait at least 30 seconds.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Loosen the mounting screws, remove the center console air duct (A).
    G13481563Courtesy of KIA MOTORS AMERICA, INC.

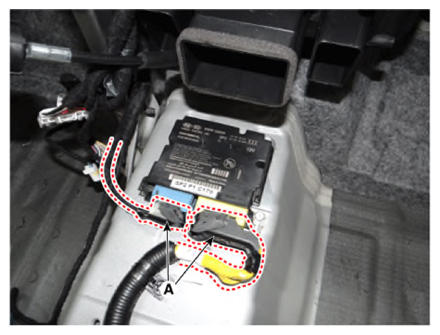

  4. Disconnect the SRSCM connectors (A).
    G13481564Courtesy of KIA MOTORS AMERICA, INC.

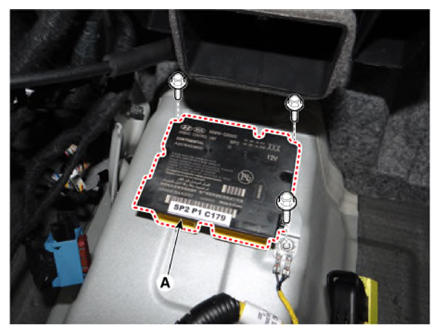

  5. Remove the SRSCM (A) by loosening the bolts.

    Tightening torque:

    10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lbf.ft)

    G13481565Courtesy of KIA MOTORS AMERICA, INC.
