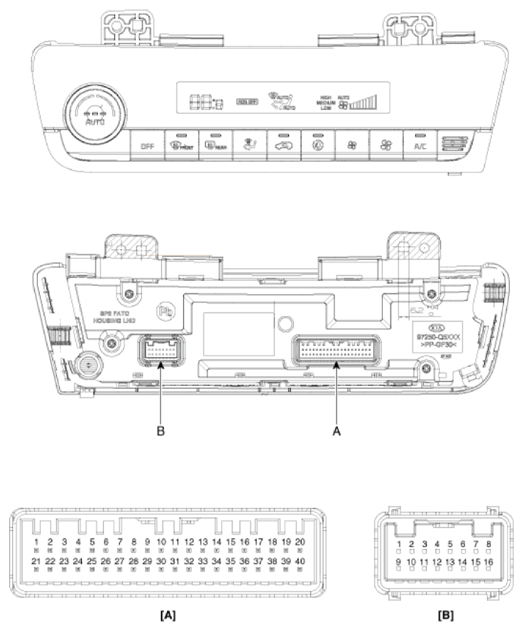

Components & Components Location: Components
WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| A |
1 |
Battery (+) |
A |
21 |
IGN2 |
| 2 |
ISG B+ |
22 |
IGN1 |
| 3 |
ILL+ (TAIL) |
23 |
Blower motor (+) |
| 4 |
Sensor ground REF (+5V) |
24 |
Photo sensor (-) [LH] |
| 5 |
Mode control actuator (Feedback) |
25 |
- |
| 6 |
Temperature actuator feedback (Feedback) |
26 |
- |
| 7 |
Intake actuator (Feedback) |
27 |
- |
| 8 |
EVAP sensor (+) |
28 |
PTC Relay 3 |
| 9 |
AMB sensor (+) |
29 |
PTC Relay 2 |
| 10 |
Mode control actuator (Vent) |
30 |
PTC on signal |
| 11 |
Mode control actuator (Def) |
31 |
Detent out (-) |
| 12 |
Temperature actuator (Cool) |
32 |
- |
| 13 |
Temperature actuator (Warm) |
33 |
P_CAN High |
| 14 |
Intake actuator (Fresh) |
34 |
P_CAN Low |
| 15 |
Intake actuator (Recirculation) |
35 |
FET (DRAIN F/B) |
| 16 |
HTD (Rear defog indicator) |
36 |
FET (GATE) |
| 17 |
Rear defog switch |
37 |
ECV (+) |
| 18 |
- |
38 |
ECV (-) |
| 19 |
- |
39 |
Sensor ground |
| 20 |
ILL- (RHEO) |
40 |
Ground |
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| B |
1 |
- |
B |
9 |
- |
| 2 |
- |
10 |
- |
| 3 |
- |
11 |
- |
| 4 |
DEF Actuator feedback |
12 |
ADS TEMP |
| 5 |
DEF Actuator (Open) |
13 |
ADS SCK |
| 6 |
DEF Actuator (Close) |
14 |
ADS Date |
| 7 |
- |
15 |
- |
| 8 |
- |
16 |
Ground |
