Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

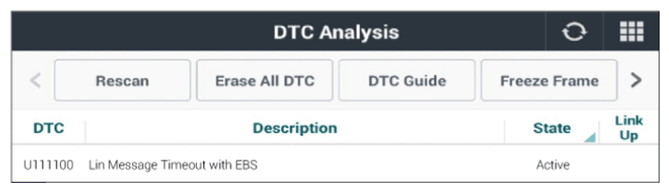

 Figure 1 below.
G13041356Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
