Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

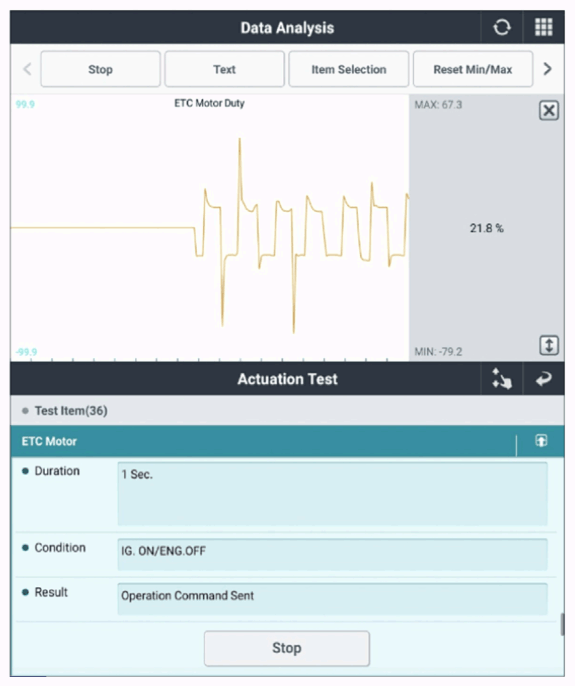

Ignition "ON" Engine "ON" and NO DTC.	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Figure 1 below.

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ETC Motor and go to "VERIFICATION OF REPAIR " procedure.
