Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

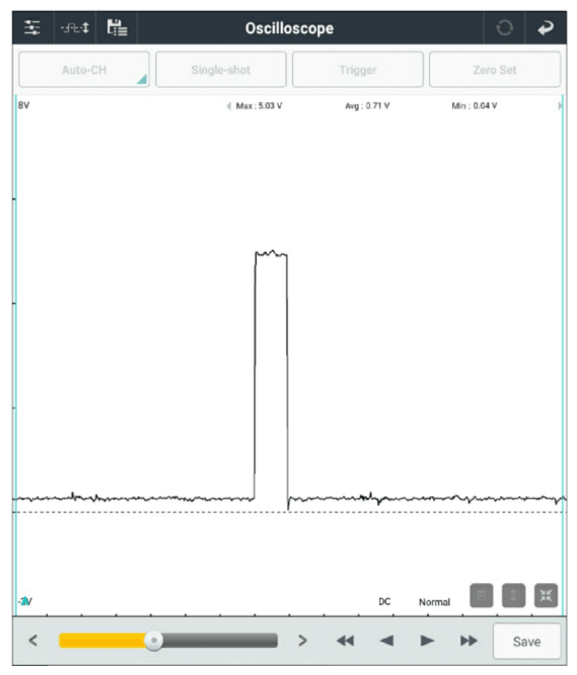

Ignition coil connector | 2 (Signal) | Chassis ground | - | Figure 1 below. |

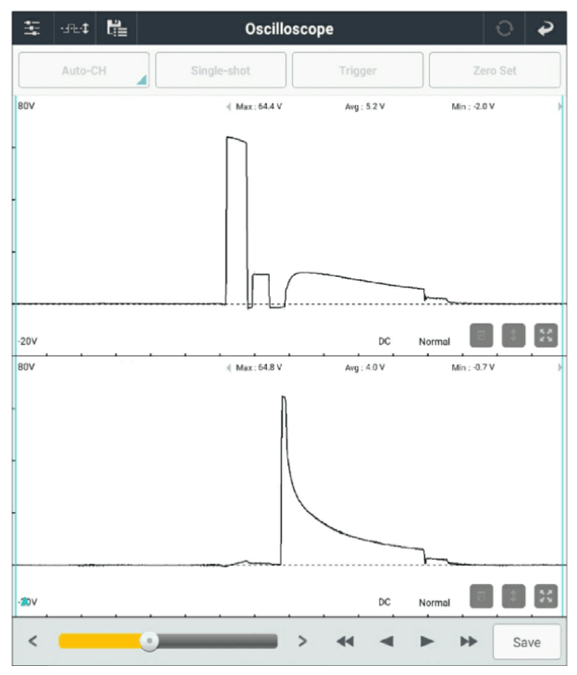

| Injector connector | 1 (High) | Injector connector | 2 (Low) | Fig.2 | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the Ignition coil or Injector and go to "VERIFICATION OF REPAIR " procedure.
