Component Inspection

Inspection Condition	Inspection Procedure	Reference

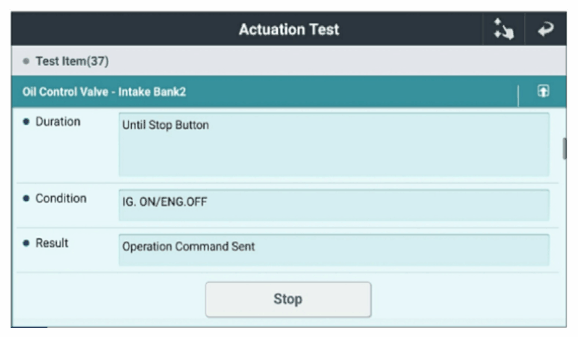

Ignition "ON", engine "OFF".	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Fig.1 (Check the operating sound)

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OCV In - Bank2 and go to "VERIFICATION OF REPAIR " procedure.
