Components Location

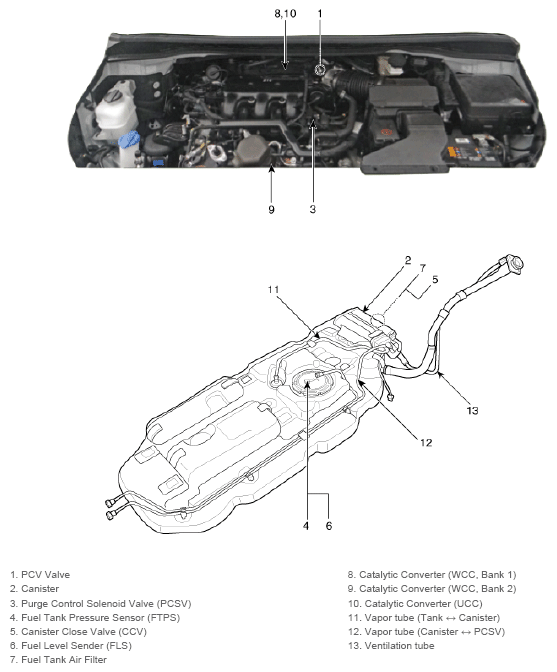

G13044128

Courtesy of KIA MOTORS AMERICA, INC.

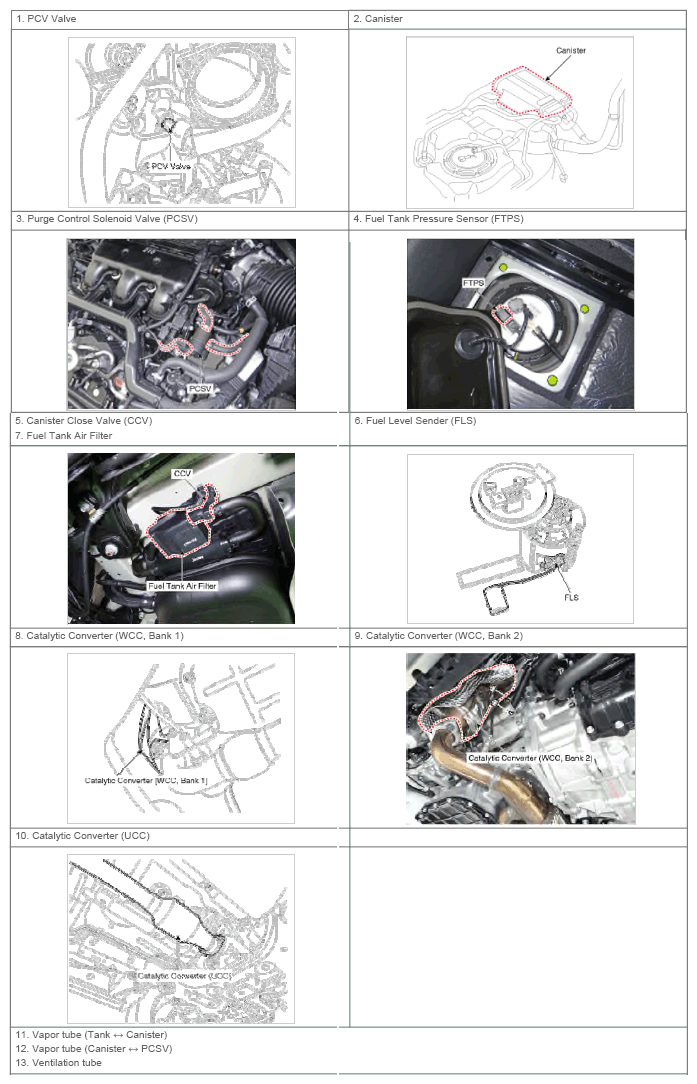

G13044129

Courtesy of KIA MOTORS AMERICA, INC.

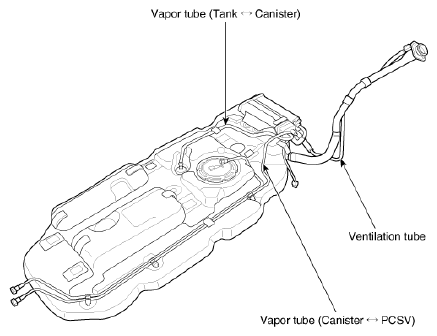

G13044130

Courtesy of KIA MOTORS AMERICA, INC.
