Home >> Kia >> 2021 >> Sedona EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Rear Power Window Switch

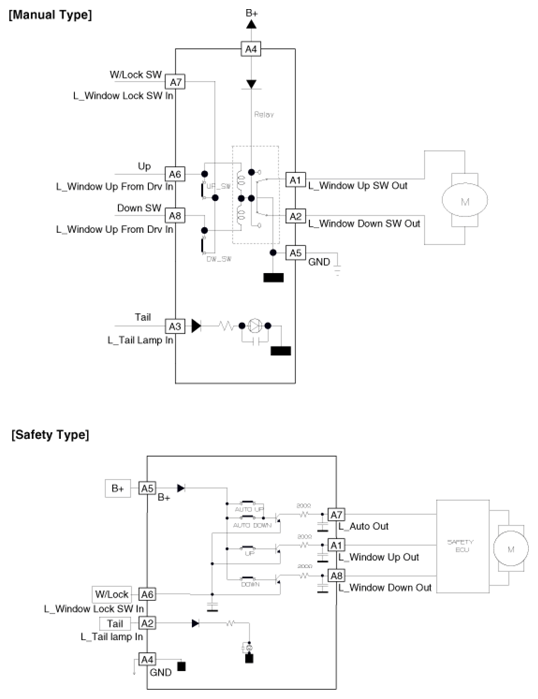

Rear Power Window Switch

G13047325

Courtesy of KIA MOTORS AMERICA, INC.
