Assist Power Window Switch

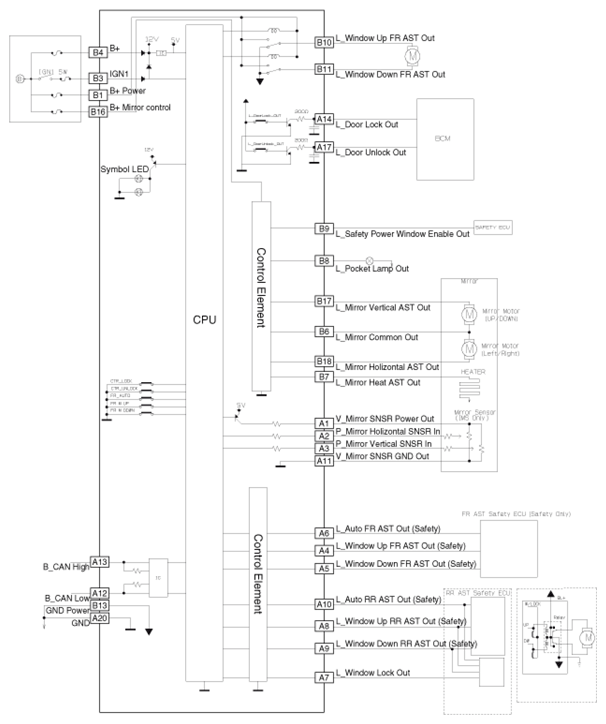

[Assist Power Window Module (ADM, IMS)]

G13047323

Courtesy of KIA MOTORS AMERICA, INC.

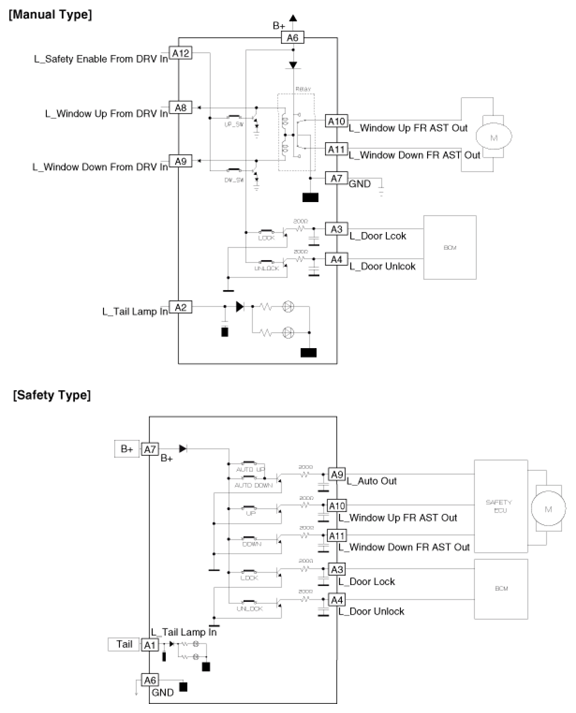

[Assist Power Window Switch (Non-IMS)]

G13047324

Courtesy of KIA MOTORS AMERICA, INC.
