Components & Components Location: Components

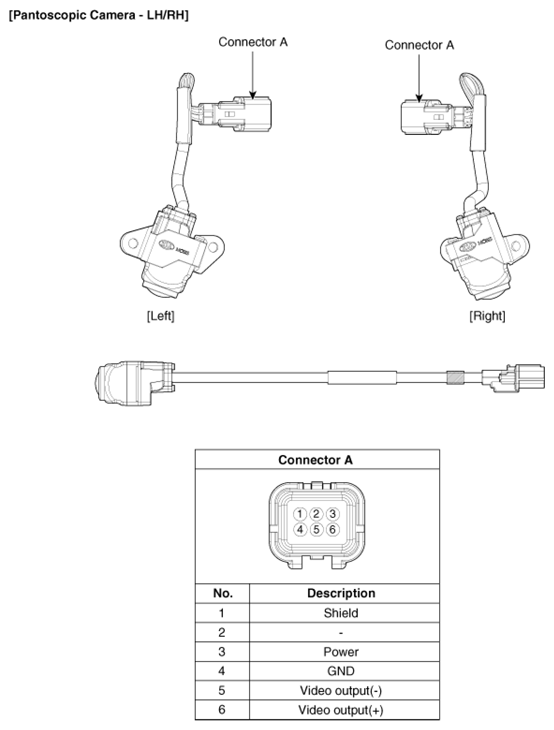

Fig 1: LH/RH Pantoscopic Camera Connector End View And Terminal Description
G13047582Courtesy of KIA MOTORS AMERICA, INC.

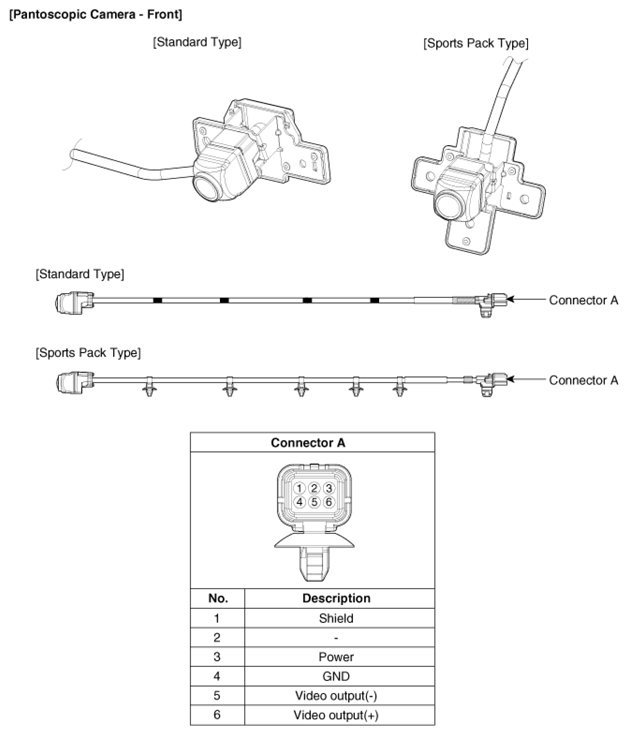

Fig 2: Front Pantoscopic Camera Connector End View And Terminal Description
G13047583Courtesy of KIA MOTORS AMERICA, INC.

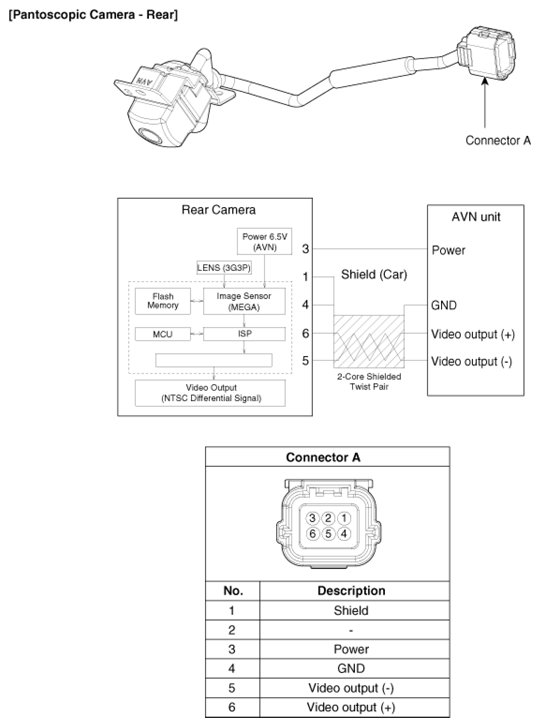

Fig 3: Rear Pantoscopic Camera Connector End View And Terminal Description
G13047584Courtesy of KIA MOTORS AMERICA, INC.
