Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS/GDS.
 Figures below.

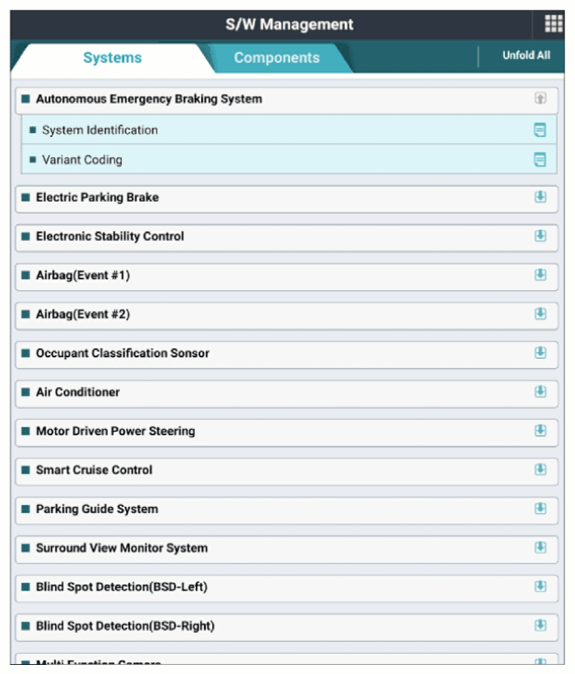

G13042280Courtesy of KIA MOTORS AMERICA, INC.

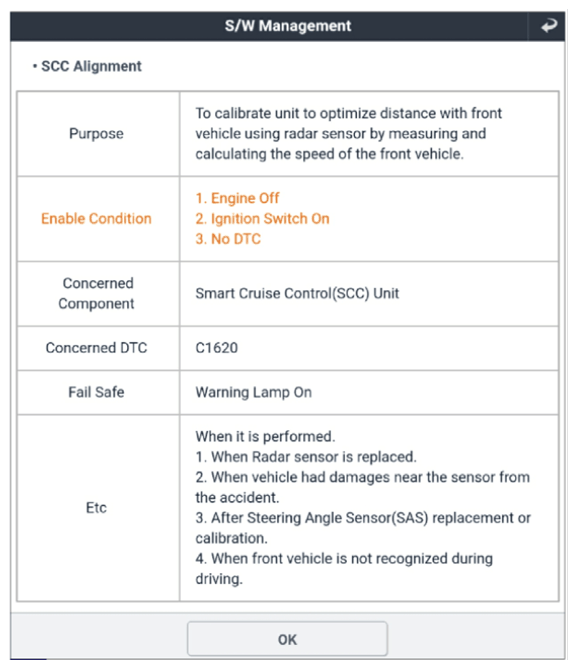

G13042281Courtesy of KIA MOTORS AMERICA, INC.

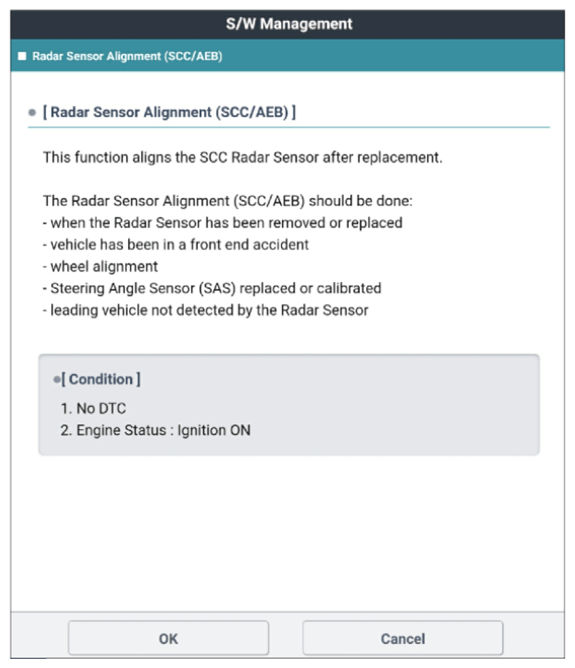

G13042282Courtesy of KIA MOTORS AMERICA, INC.

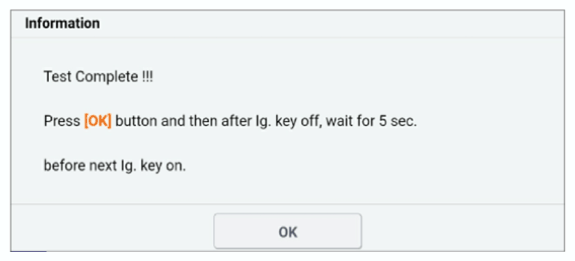

G13042283Courtesy of KIA MOTORS AMERICA, INC.
