Repair Procedures: Removal

  1. Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.

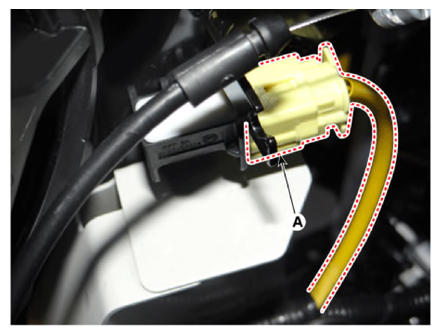

  2. Disconnect the front impact sensor connector (A).
    G13705309Courtesy of KIA MOTORS AMERICA, INC.

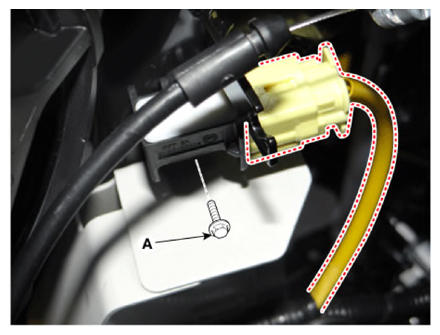

  3. Remove the front impact sensor mounting bolt (A).
    G13705310Courtesy of KIA MOTORS AMERICA, INC.
