Universal Joint Assembly

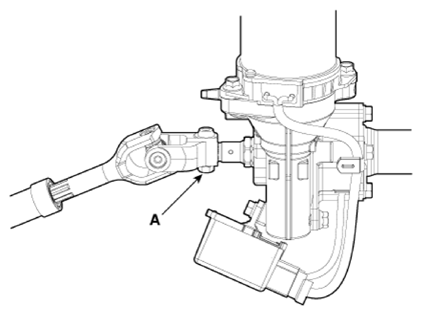

  1. Loosen the bolt and then disconnect the universal joint assembly from the steering column assembly.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0kgf.m, 36.2 - 43.4 lb.ft)

    G13705219Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
