OCS Reset Procedure

Reset OCS after servicing or replacing any parts of the passenger seat (that is not included in full seat assembly).

1. Switch "OFF" ignition, and connect KDS

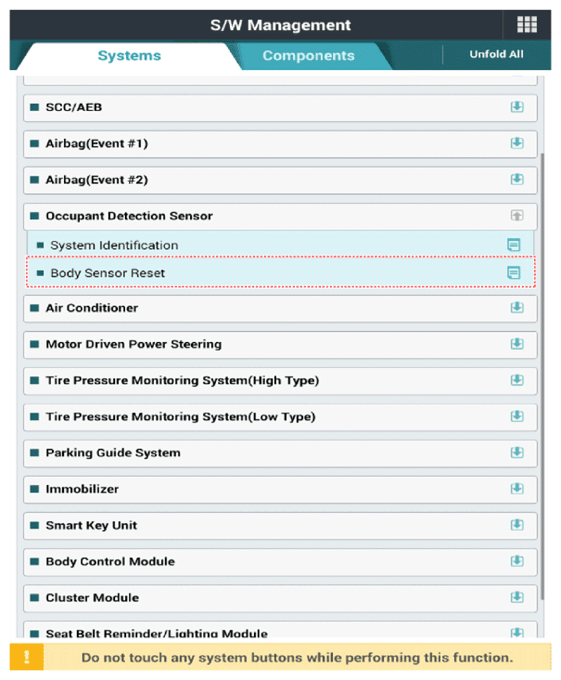

2. Switch "ON" ignition and "OFF" engine. Then, select "Body Sensor Reset" mode in Airbag System.

   Courtesy of KIA MOTORS AMERICA, INC.

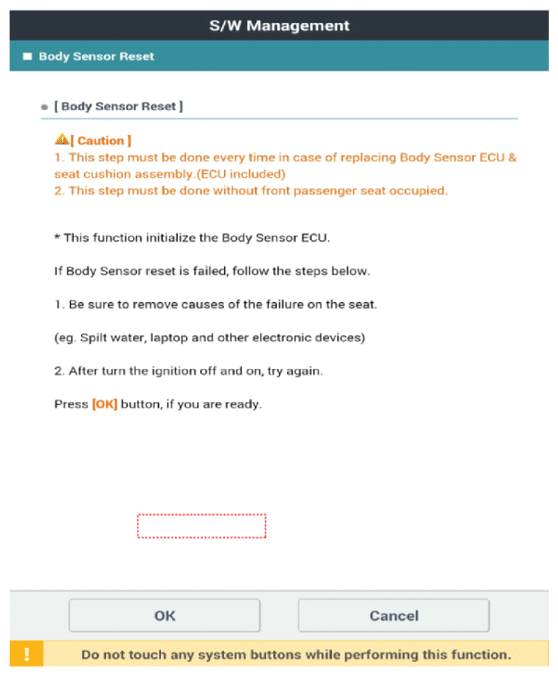

3. The KDS will indicate two steps of OCS Reset mode.
   1. Erase OCS diagnostic codes.
   2. Initialize OCS unit.

   Courtesy of KIA MOTORS AMERICA, INC.

   CAUTION:

   • This step must be conducted with the front passenger seat unoccupied.

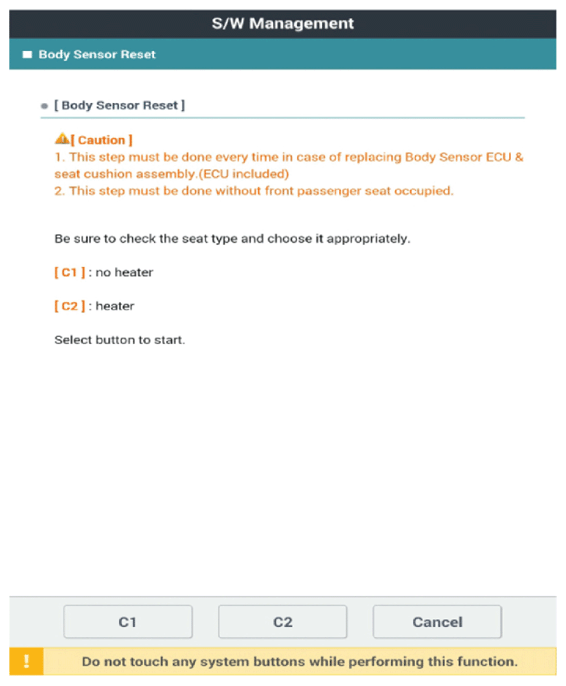

4. Select product configuration.
   1. C1: Without seat heater
   2. C2: With seat heater

   Courtesy of KIA MOTORS AMERICA, INC.

   CAUTION:

   • Before starting the OCS Reset procedure, cross check for correct seat configuration with the actual vehicle.
   • The center console has different buttons for each seat configuration type. (Refer to the following image.)

     Courtesy of KIA MOTORS AMERICA, INC.

5. The OCS initialization procedure will be performed.

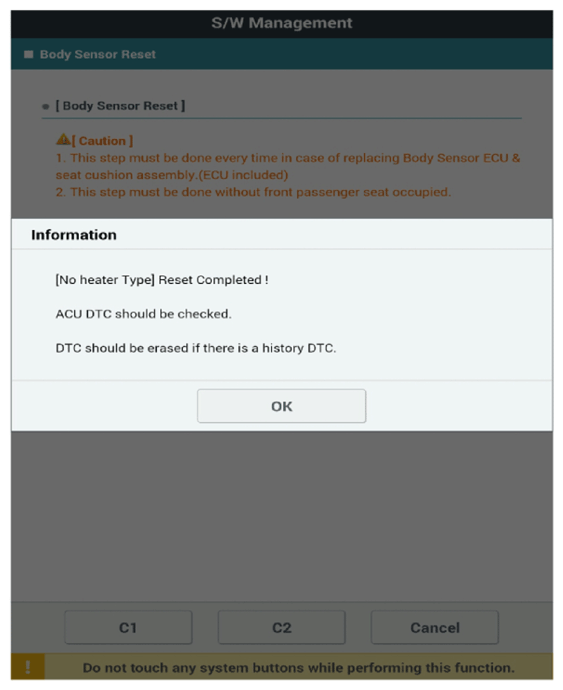

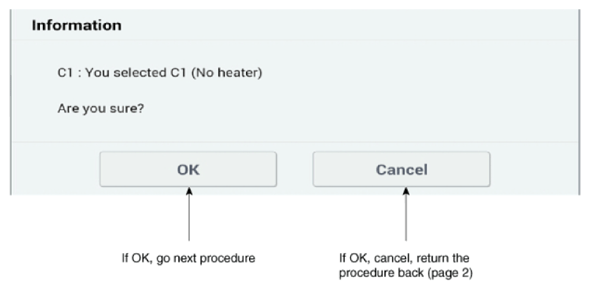

   C1: Reset No Seat Heater Type

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

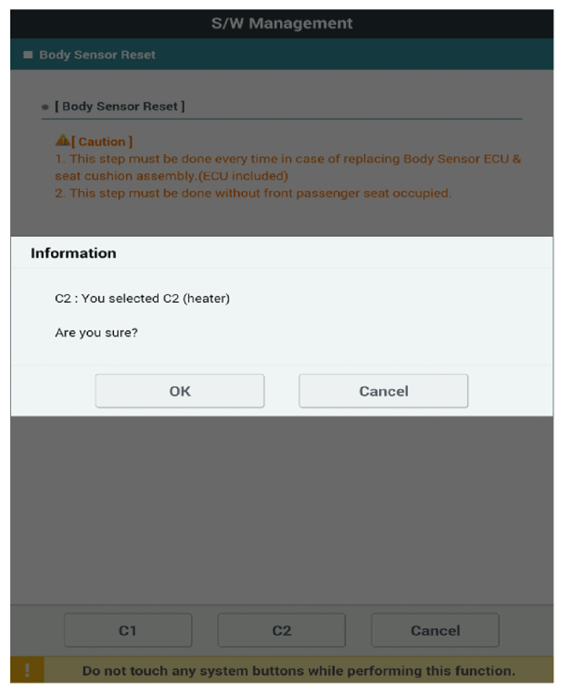

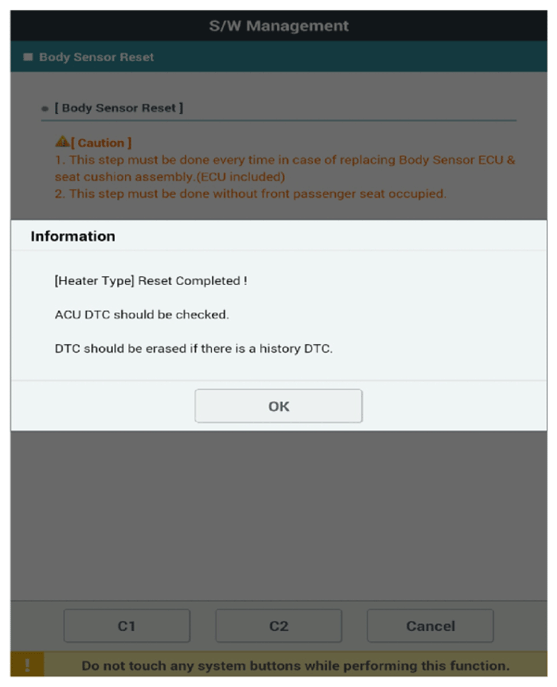

   C2: Heater Type Reset (Including Cooling Seat)

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.
