Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

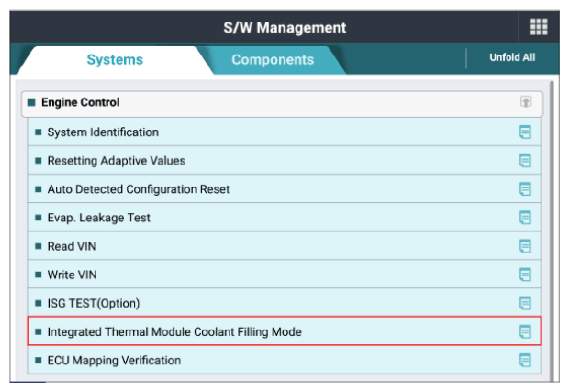

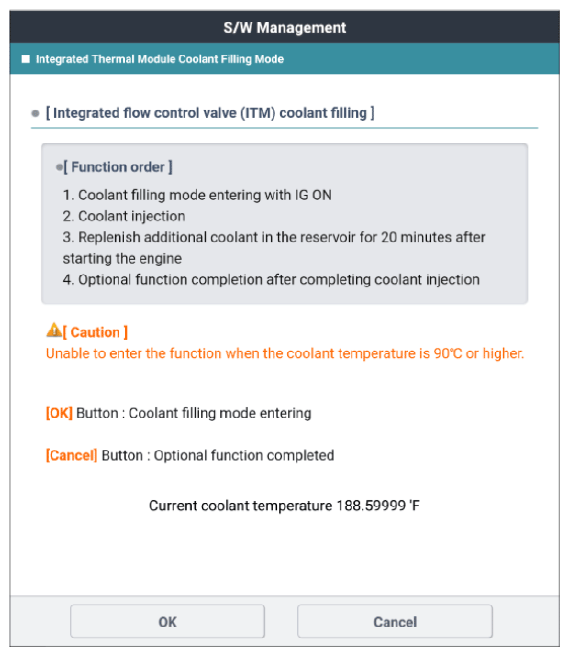

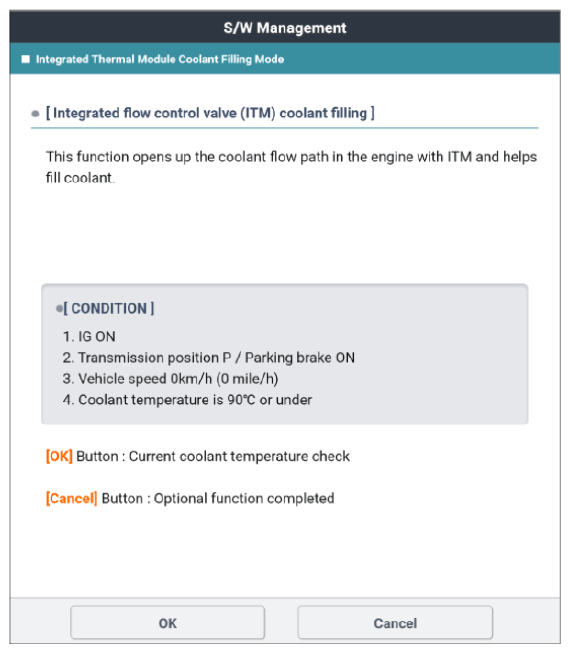

 Fig.1 to 3
G13709413Courtesy of KIA MOTORS AMERICA, INC.
G13709414Courtesy of KIA MOTORS AMERICA, INC.
G13709415Courtesy of KIA MOTORS AMERICA, INC.
