CVVT System Mode

G13704592Courtesy of KIA MOTORS AMERICA, INC.

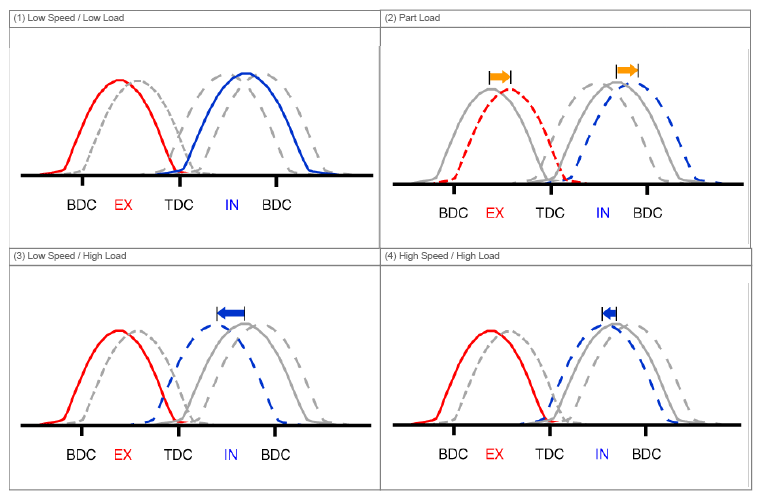

G13704593Courtesy of KIA MOTORS AMERICA, INC.
Driving Condition Exhaust Valve Intake Valve
Valve Timing Effect Valve Timing Effect
(1) Low Speed/Low Load Completely Advance
  1. * Valve Under-lap
  2. * Improvement of combustion stability
 Middle
  1. * Valve Under-lap
  2. * Improvement of combustion stability
(2) Part Load Retard
  1. * Reduction of HC
 Retard
  1. * Reduction of pumping loss
(3) Low Speed/High Load Completely Advance
  1. * Reduction of pumping loss
 Advance
  1. * Prevention of intake back flow (Improvement of volumetric efficiency)
(4) High Speed/High Load Completely Advance
  1. * Reduction of pumping loss
 Advance
  1. * Prevention of intake back flow (Improvement of volumetric efficiency)
