Repair Procedures: Inspection

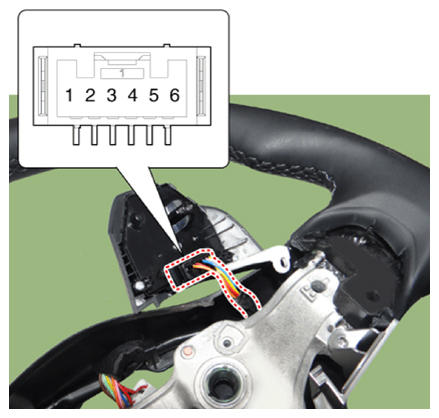

  1. Check for resistance between terminals in each switch position.
G13706776Courtesy of KIA MOTORS AMERICA, INC.
Switch Connector terminal Resistance (±3%)
Cancel 2-6 390 Ω
SET - 610 Ω
RES + 910 Ω
Cruise ON/OFF 1.38 kΩ
Cruise & Speed Limit ON/OFF 2.13 kΩ
Cruise Mode
Group 1-6 390 Ω
Trip Up 610 Ω
Trip Down 910 Ω
OK/Reset 1.38 kΩ
