Engine Clutch/Motor Resolver Adaptation

  1. Turn the ignition switch OFF.
  2. Connect the KDS to Data Link Connector (DLC).

    Turn the ignition switch ON.

  3. Select "Vehicle, Model year, Engine, System".
  4. Select "Vehicle S/W Management".

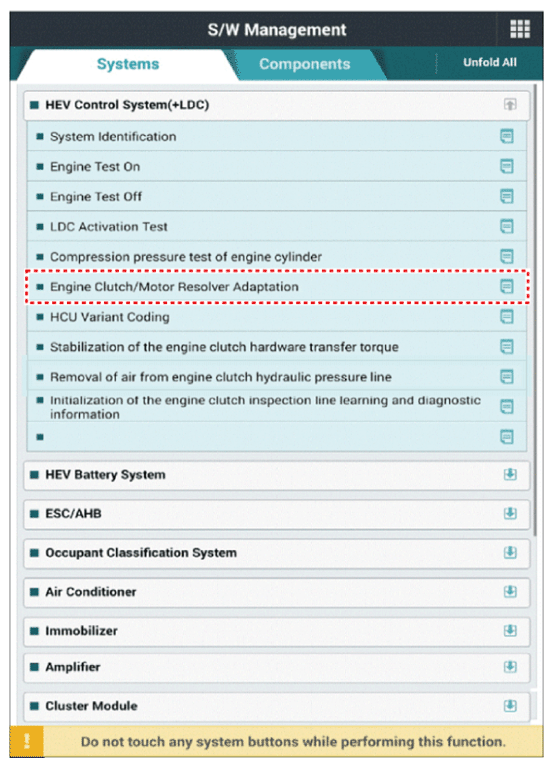

  5. Select "Engine clutch/motor resolver adaptation.".
    G13352026Courtesy of KIA MOTORS AMERICA, INC.
