Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

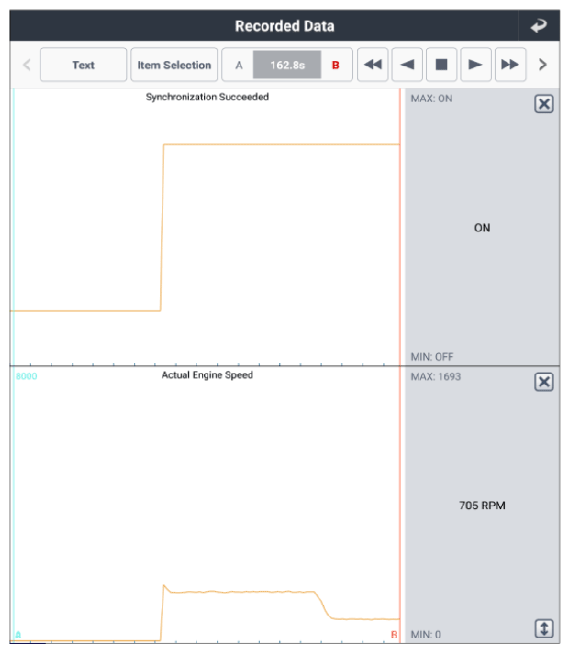

Fig. 1 to 3 |
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

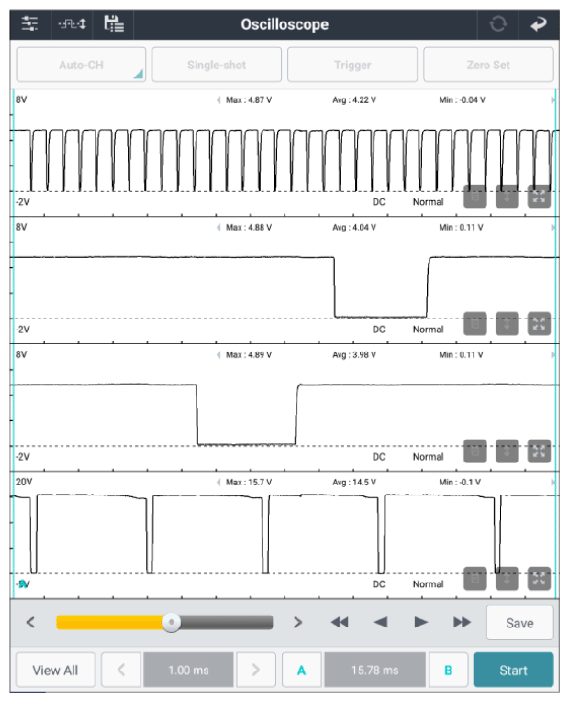

CKPS connector | 2 (signal) | CMPS - In connector | 2 (signal) | Fig. 2 |
| CMPS - Ex connector | 2 (signal) | VFS - In connector | 1 (control) | ||
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

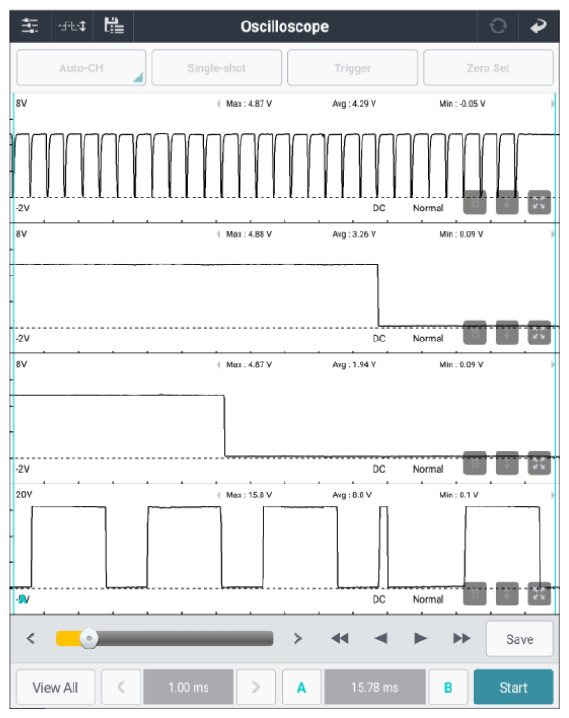

CKPS connector | 2 (signal) | CMPS - In connector | 2 (signal) | Fig. 3 |
| CMPS - Ex connector | 2 (signal) | OCV - Ex connector | 1 (control) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "SYSTEM INSPECTION " procedure.
