Kia
>>
2021
>>
Niro Plug-In Hybrid EX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Front View Camera System (PHEV)
>>
Front View Camera Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

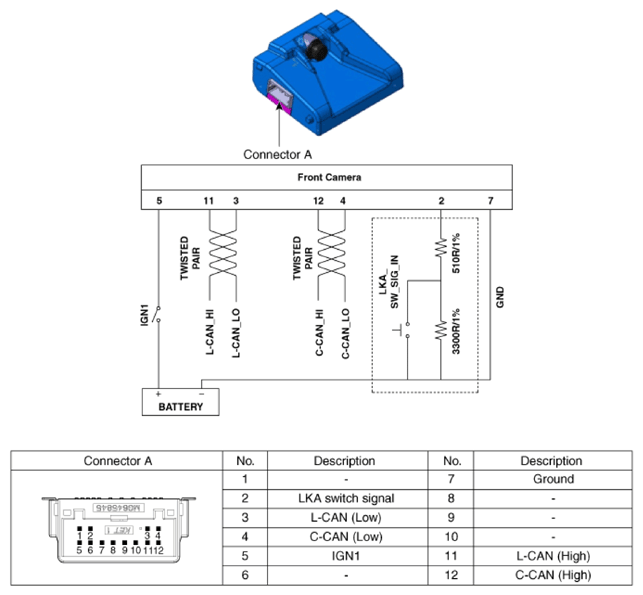

Fig 1: Front View Camera Unit Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
