Repair Procedures: Inspection

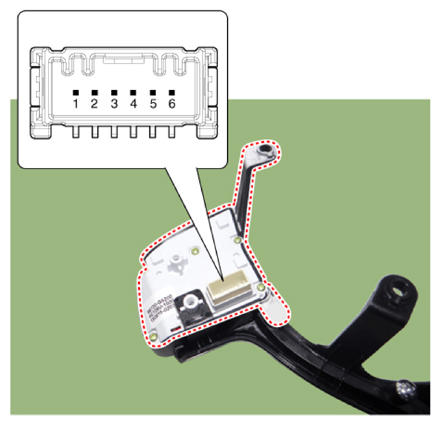

  1. Check for resistance between terminals in each switch position (RH).
    G13351798Courtesy of KIA MOTORS AMERICA, INC.
    Switch Connector terminal Resistance (±3%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    SCC (Following distance control) 3.63 kΩ
