Repair Procedures: Removal

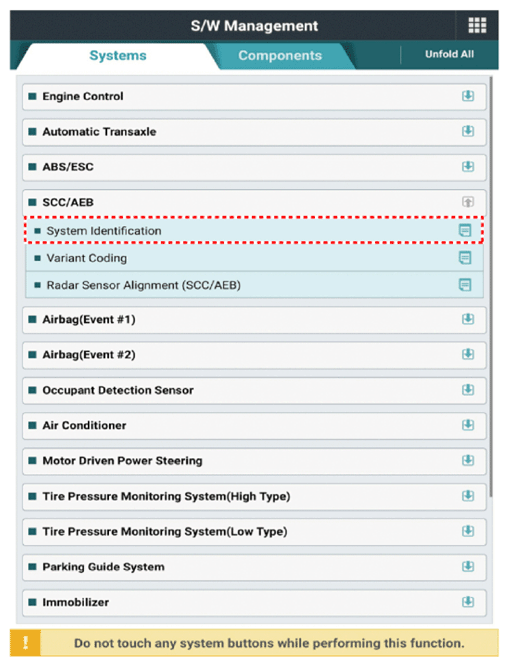

  1. If the front radar unit needs to be replaced, check the system identification by using the KDS.
    G13351787Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

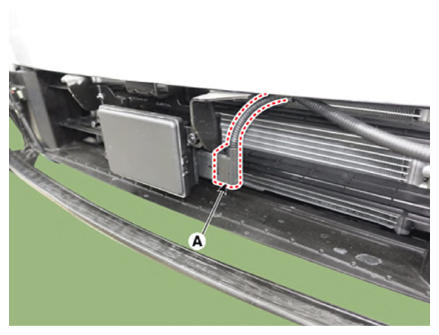

  3. Disconnect the connector (A) from the front radar unit.
    G13351788Courtesy of KIA MOTORS AMERICA, INC.

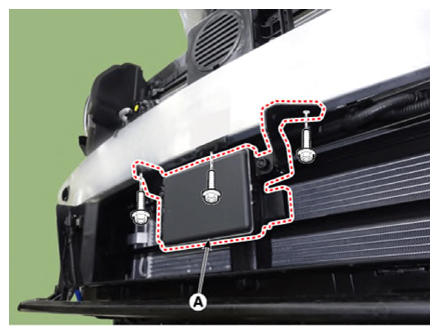

  4. Remove the front radar unit (A) after loosening the mounting bolts.
    G13351789Courtesy of KIA MOTORS AMERICA, INC.
