Home >> Kia >> 2021 >> Niro LXS >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System (HEV) >> Inhibitor Switch >> Components And Component Location >> Component Location

Component Location

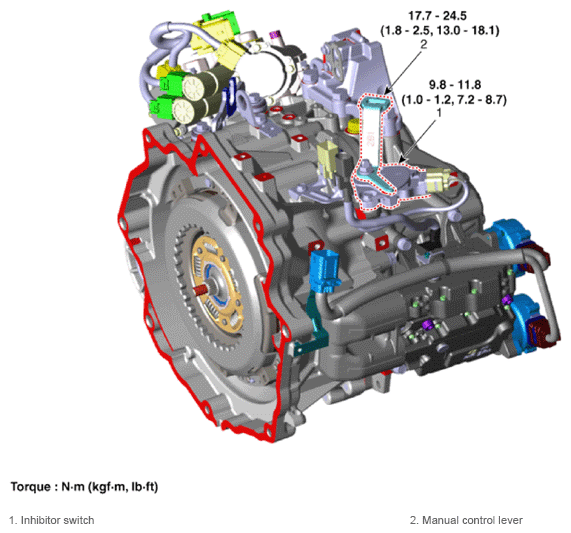

Fig 1: Inhibitor Switch Components Location With Torque Specification

G13436966

Courtesy of KIA MOTORS AMERICA, INC.
