| Insulation gloves |
 Courtesy of KIA MOTORS AMERICA, INC.
|
Used when inspecting or working on the high voltage components [Insulation performance: 1000V/300A or above] |
| Insulation shoes |
 Courtesy of KIA MOTORS AMERICA, INC.
|
Used when inspecting or working on the high voltage components |
| Insulation clothes |
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Insulation helmet |
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Safety glasses |
 Courtesy of KIA MOTORS AMERICA, INC.
|
Used in the following cases:
- During removal & installation or inspection of the high voltage battery terminals or wiring, where spark might happen.
- When working on the high voltage battery pack assembly.
|
| Face shield |
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Insulation mat |
 Courtesy of KIA MOTORS AMERICA, INC.
|
All removed high voltage components are placed on an insulation mat to prevent accident. |
| Insulation sheet |
 Courtesy of KIA MOTORS AMERICA, INC.
|
Insulation sheet is used to cover high voltage components to protect people not wearing personal protective equipment from accident. |

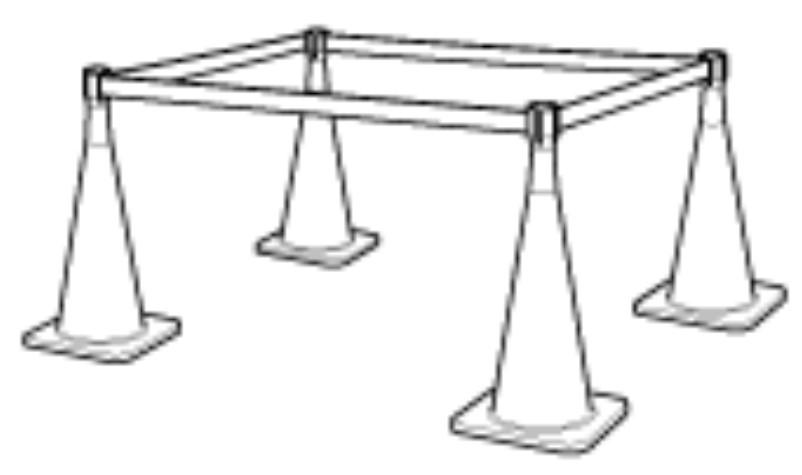

| Warning tape |
 Courtesy of KIA MOTORS AMERICA, INC.
|
Used for informing that it is dangerous past this line. |
