Repair Procedures: Removal

  1. You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.
    1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.
    2. Select the 'S/W Management' and 'Car model'.
    3. Select "Front View Camera" and "System Identification".

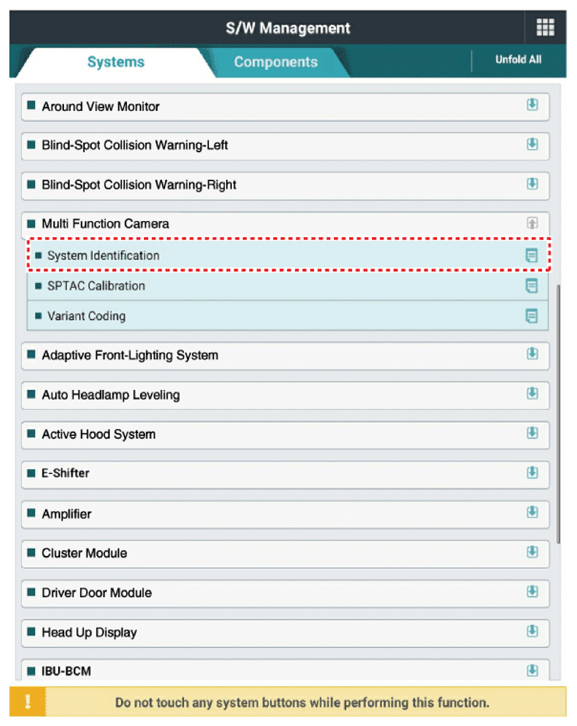

    G13439349Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative battery terminal.

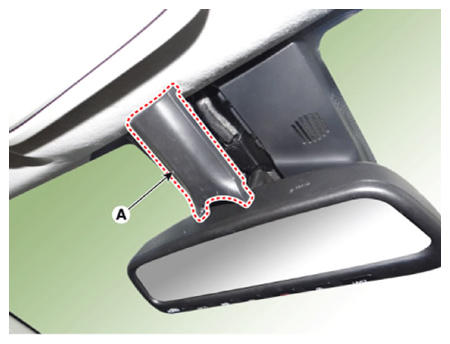

  3. Remove the inside rear view mirror cover (A).
    G13439350Courtesy of KIA MOTORS AMERICA, INC.

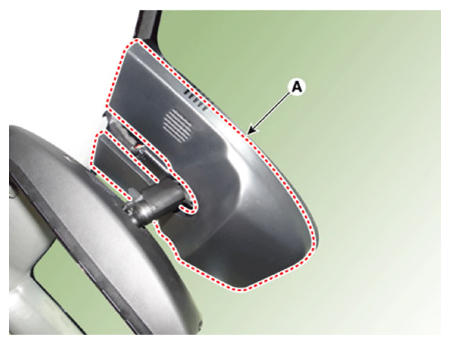

  4. Remove the unit cover (A).
    G13439351Courtesy of KIA MOTORS AMERICA, INC.

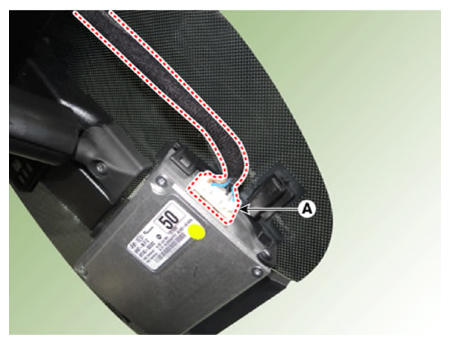

  5. Disconnect the front view camera connector (A).
    G13439352Courtesy of KIA MOTORS AMERICA, INC.

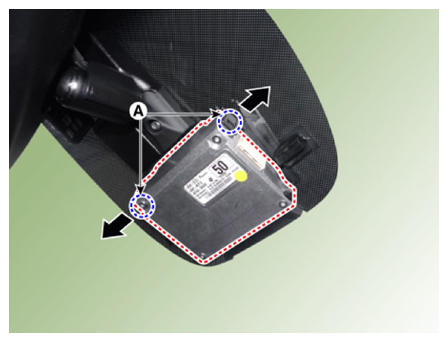

  6. Separate the fixed hooks (A) of coupler, remove the front view camera (B).
G13439353Courtesy of KIA MOTORS AMERICA, INC.

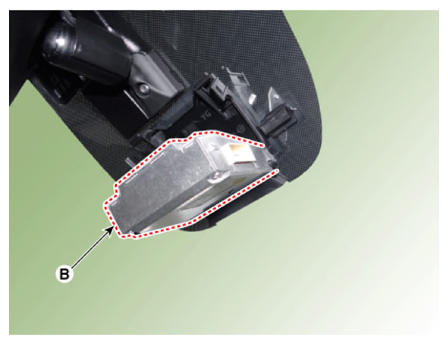

G13439354Courtesy of KIA MOTORS AMERICA, INC.
NOTE: When separate the fixed hooks (A), be careful not to damage it.
