Connector And Terminal Function

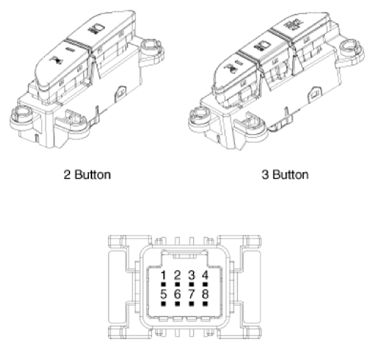

G13439486Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
2 Button 3 Button
1 Illumination (+) Illumination (+)
2 HEV (RVM) HEV
3 - RVM
4 Illumination (-) Illumination (-)
5 PDW indicator PDW indicator
6 PDW PDW
7 - -
8 Ground Ground
