Rear Wheel Speed Sensor Connector

  1. Disconnect the battery negative terminal.
  2. Remove the rear wheel and tire.

    (Refer to Suspension System - "WHEEL ")

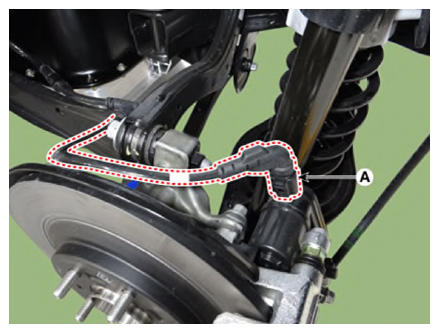

  3. Disconnect the EPB connector (A).
    G13374432Courtesy of KIA MOTORS AMERICA, INC.

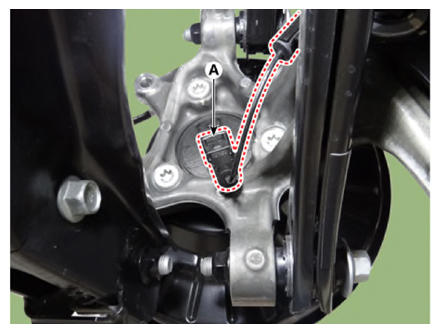

  4. Disconnect the rear wheel speed sensor connector (A).
    G13374433Courtesy of KIA MOTORS AMERICA, INC.

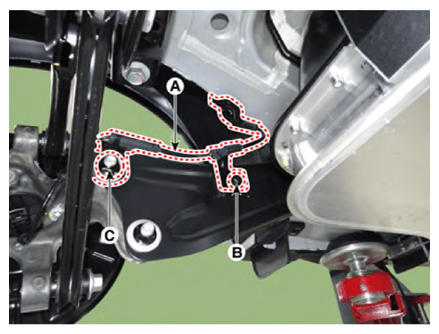

  5. Disconnect the rear wheel speed sensor extension wiring (A) by loosening the bolt and nut.

    Tightening torque

    Bolts (B): 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    Nut (C): 137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

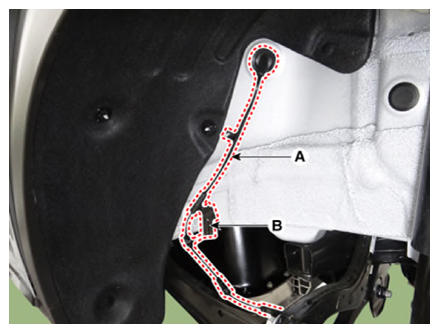

    G13374434Courtesy of KIA MOTORS AMERICA, INC.
    G13374435Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

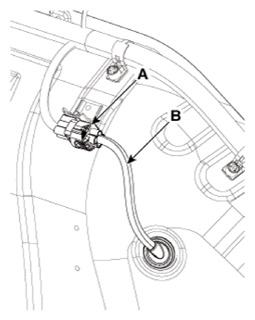

  7. Disconnect the connector (A) and then remove the rear wheel speed sensor extension wiring (B).
    G13374436Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
