Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

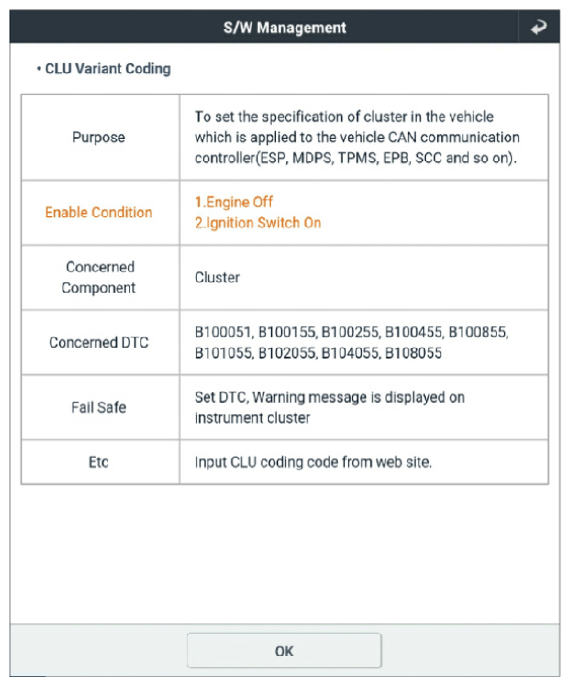

G13384780Courtesy of KIA MOTORS AMERICA, INC.

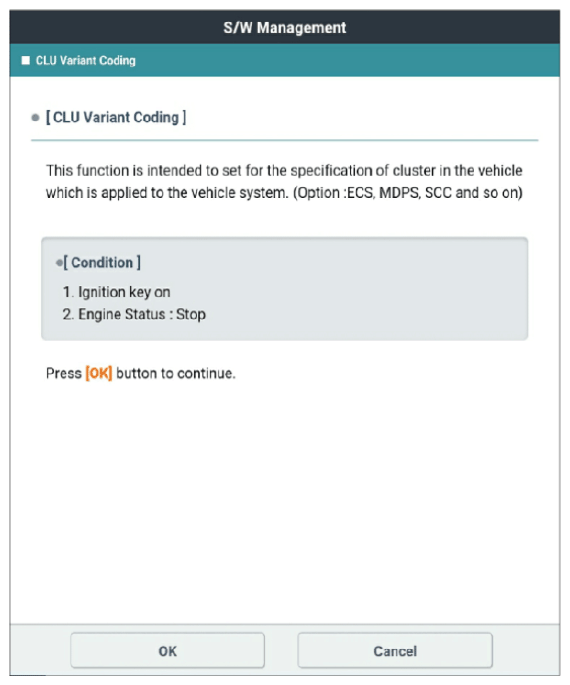

G13384781Courtesy of KIA MOTORS AMERICA, INC.

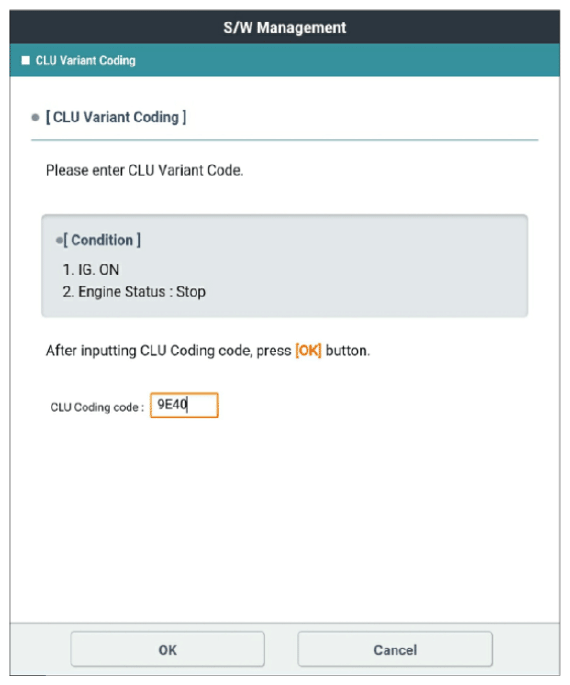

G13384782Courtesy of KIA MOTORS AMERICA, INC.

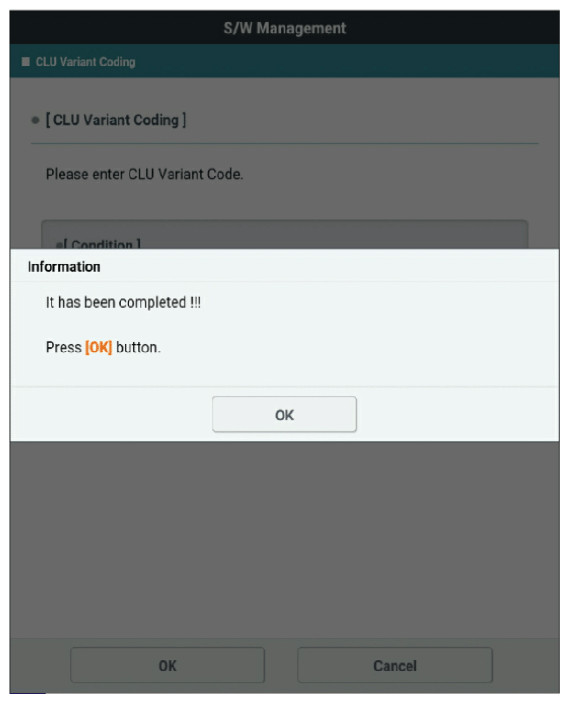

G13384783Courtesy of KIA MOTORS AMERICA, INC.

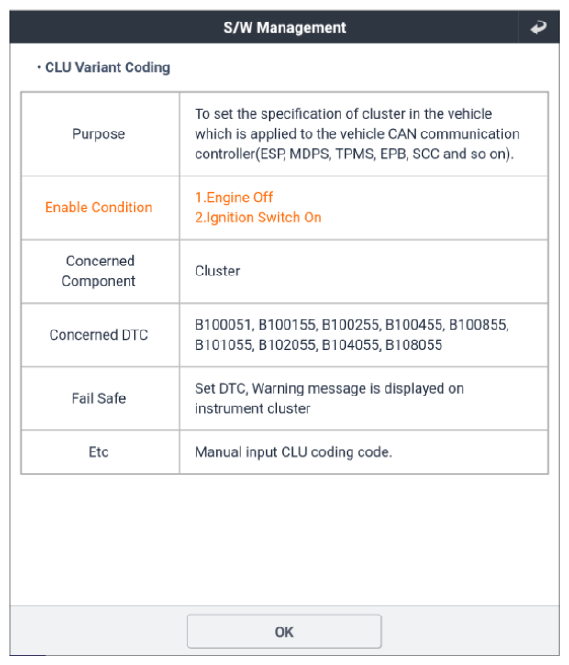

G13384784Courtesy of KIA MOTORS AMERICA, INC.

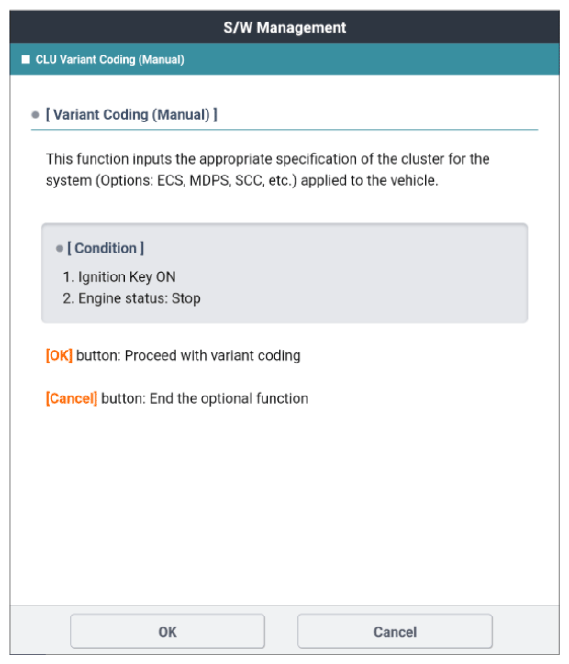

G13384785Courtesy of KIA MOTORS AMERICA, INC.

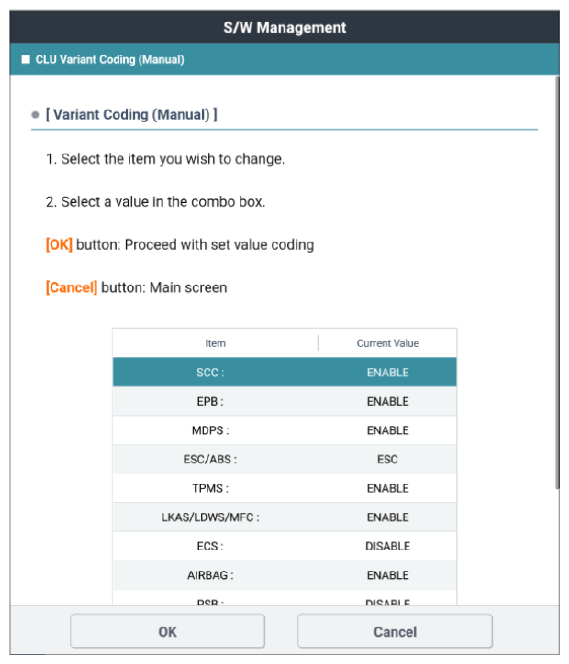

G13384786Courtesy of KIA MOTORS AMERICA, INC.

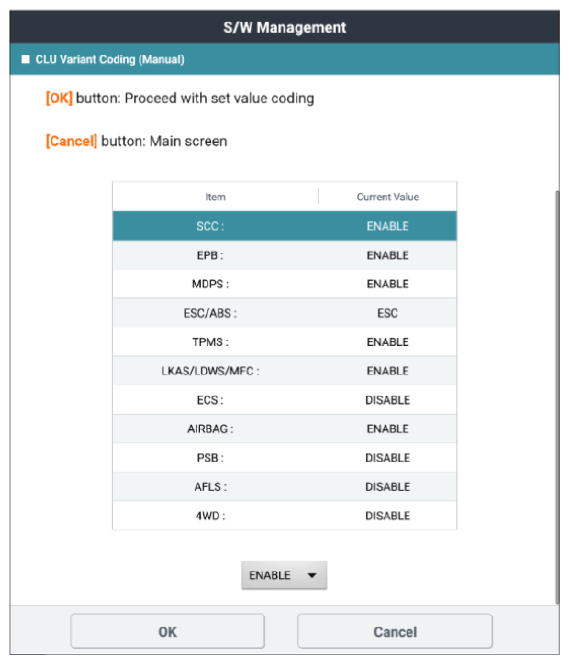

G13384787Courtesy of KIA MOTORS AMERICA, INC.

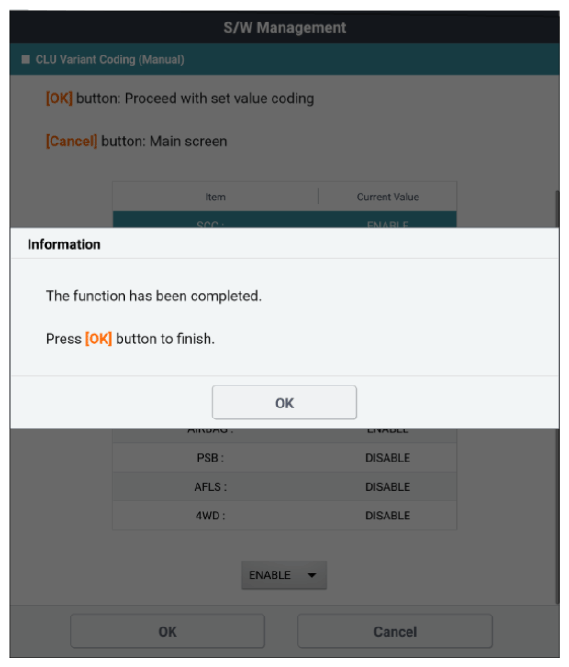

G13384788Courtesy of KIA MOTORS AMERICA, INC.
